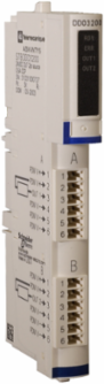

Schneider Electric STBDDO3200K Standard Digital Output Kit - 24 V DC, 2 Outputs, IP20, 0.112 kg

MPN: STBDDO3200K
PPN: SCH-STBDDO3200K
UNSPSC: 32151701

$113.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Standard Digital Output Kit from Schneider Electric is an essential component for automation and control systems, offering reliable performance in various industrial applications. Designed to operate at 24 V DC, this kit features two outputs and is housed in an IP20 rated enclosure, ensuring protection from dust and solid particulates. Weighing just 0.112 kg, it facilitates easy integration into existing setups, making it a practical choice for enhancing control capabilities in PLC and HMI systems. With its robust engineering and efficient output management, it stands out as a vital tool for effective data acquisition and process automation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Depth	70 mm

Complementary Attributes

Absolute Maximum Voltage	56 V 1.3 ms
Minimum Load	0.5 mA

Maximum Leakage Current	0.4 mA 30 V DC at state 0

Important Information Attributes

Kit Composition	STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBDDO3200 module, STBXTS1100, 6-terminal screw type connector
Certificate Agency	CSA, UL, FM Class 1 Division 2
Local Publishable Date	2026-01-12
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Device Application	Industrial Application
Fallback Status	state 0 basic NIMsuser configurable standard NIMs
Hot Swapping Fallback	yes for standard NIMs
Local Signalling	1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (OUT1 to OUT2)1 LED (red) for module error (ERR)
Network Type	AC/DC
Overvoltage Category	II
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon STB distributed I/O solution
Returnability	No
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	true
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	true
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	true
Width Nominal	128.3 mm
Supporting Protocol For Tcp/Ip	true
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Rack Assembly Possible	false
Supporting Protocol For Data Highway	false

Vibration Resistance	+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Electrical Connection	screw terminal
Front Installation Possible	false
Isolation Between Channels And Bus	1500 V for 1 minute
Marking	CE
Optical Interface Present	false
Power Supply Type	power distribution module
Product Or Component Type	standard digital output kit
Radio Standard Gprs	false
Radio Standard Umts	false
Reset	manual or automatic reset COM fault
Shock Resistance	30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Typical Current Consumption	50 mA 5 V DC
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Digital Outputs Configurable	true
Height Nominal	13.9 mm
Supporting Protocol For Ethernet/Ip	true
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-60 °C without derating)
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Product Compatibility	I/O base STBXBA1000, power distribution module STBPDT3100/3105
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % 60-60 °C without condensation

General Attributes

Product Or Component Type	standard digital output kit

Range Of Product	Modicon STB distributed I/O solution

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Output Attributes

Discrete Output Number	solid state at 24 V DC, 2
Discrete Output Current	500 mA
Discrete Output Type	solid state
Discrete Output Voltage Type	DC
Response Time On Output	575 µs on to off620 µs off to on

Output Protection Type	power protection integrated fuse on PDM time lag 10 A, reverse polarity protection, short-circuit protection, thermal overload protection
Discrete Output Logic	positive logic (source)/negative logic (sink)
Discrete Output Voltage	24 V DCsolid state
Output Voltage	19.2...30 V DC
