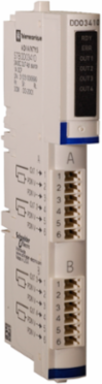

Schneider Electric STBDDO3410K Digital Output Kit 24V DC, 4 Outputs, 0.11 kg, IP20
- MPN: STBDDO3410K
- PPN: SCH-STBDDO3410K
- UNSPSC: 32151701
CAD
$155.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Digital Output Kit from Schneider Electric is engineered for reliable operation in automation and control systems, featuring four outputs at a working voltage of 24V DC. Designed for easy integration with PLCs and HMIs, the unit's streamlined configuration enhances the overall functionality of your data acquisition systems. With an IP20 rating, it ensures protection against solid objects, making it a practical choice for various industrial environments. Whether you're upgrading existing setups or developing new systems, this output kit supports efficient control solutions tailored to your specific automation needs.
Features
- Easy to connect
- 4 outputs
- Power supply 24 V DC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 70 mm |
| Weight | 133 g |
|---|
Complementary Attributes
| Absolute Maximum Voltage | 56 V 1.3 ms |
|---|---|
| Minimum Load | 0.5 mA |
| Maximum Leakage Current | 0.4 mA 30 V DC at state 0 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBDDO3410 module |
| Certificate Agency | FM Class 1 Division 2, UL, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.03962735, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 7 kg CO2 eq., 6.935665 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511012EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Device Application | Industrial Application |
| Fallback Status | state 0 basic NIMsuser configurable standard NIMs |
| Hot Swapping Fallback | yes for standard NIMs |
| Local Signalling | 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (OUT1 to OUT4)1 LED (red) for module error (ERR) |
| Network Type | AC/DC |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Returnability | No |
| Software Version | EIME v5.5 |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 23 kg CO2 eq. |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Data Source | extrapolated product |
| Width Nominal | 128.3 mm |
| Supporting Protocol For Tcp/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Rack Assembly Possible | true |
| Supporting Protocol For Data Highway | false |
| Functional Unit Description | To monitor and control industrial automation process during 10 years 100% of the time |
| Energy Consumption On Product Lifetime In Kwh | 27.594 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Carbon Footprint Of The Distribution Phase A4 | 0.01715985, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.00555598 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 16 kg CO2 eq., 16.2918 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Use Carbon Footprint | 16.2918 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | screw terminal |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Optical Interface Present | false |
| Power Supply Type | power distribution module |
| Product Or Component Type | standard digital output kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Reset | manual reset COM fault |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | true |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | true |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Typical Current Consumption | 70 mA 5 V DC |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Digital Outputs Configurable | true |
| Database Version | 2015-04 |
| Height Nominal | 13.9 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 23.28980818 |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Pep Verification Date | 2015-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | power distribution module STBPDT3100/3105, I/O base STBXBA1000 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Environmental Disclosure | ENVPEP1511012EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511012EN |
| Pcr Version | PEP-PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | standard digital output kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | solid state at 24 V DC, 4 |
|---|---|
| Discrete Output Current | 500 mA |
| Discrete Output Type | solid state |
| Discrete Output Voltage Type | DC |
| Response Time On Output | 560 µs off to on870 µs on to off |
| Output Protection Type | power protection integrated fuse on PDM time lag 10 A, reverse polarity protection, short-circuit protection, thermal overload protection |
|---|---|
| Discrete Output Logic | positive logic (source)/negative logic (sink) |
| Discrete Output Voltage | 24 V DCsolid state |
| Output Voltage | 19.2...30 V DC |
Surge Protection And Filtering Attributes
| Surge Current | 5 A 0.5 ms |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
