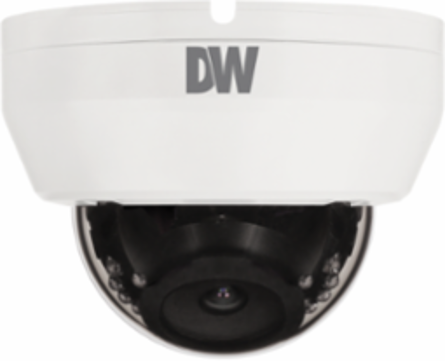

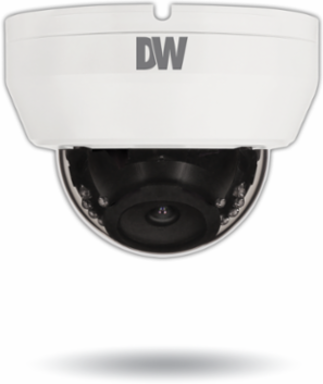

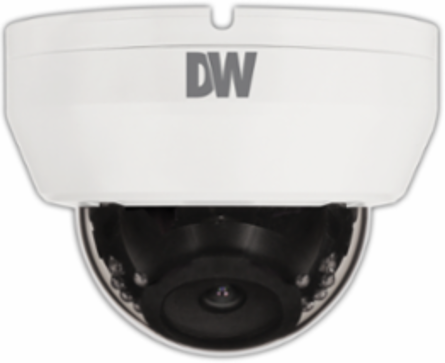

Digital Watchdog DWC-D3863WTIRW 4K Indoor Dome Camera with 3.6~10mm Vari-Focal P-Iris Lens
- MPN: DWC-D3863WTIRW
- UPC: 812226031481
- PPN: DWD-DWC-D3863WTIRW
CAD
$566.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Star-Light Plus™ UHDoC® 4K indoor dome camera from Digital Watchdog is engineered to deliver exceptional image quality and advanced surveillance capabilities. Featuring a versatile 3.6 to 10mm vari-focal p-iris lens, this camera excels in low-light conditions, providing vibrant color images even in near-total darkness, thanks to its innovative Star-Light Plus™ technology. With true wide dynamic range (WDR) and smart 3D digital noise reduction, it ensures clarity and detail in various lighting scenarios, making it an ideal choice for indoor monitoring. The camera supports multiple video outputs, including 4K resolution at 15fps and 1080p at 30fps, ensuring compatibility with a range of surveillance systems. Built with durability in mind, it operates effectively in a wide temperature range and comes with a 5-year warranty, making it a reliable addition to any security setup.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with a built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- Other certifications
- FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
MECHANICAL
- Material
- Plastic indoor housing, polycarbonate dome
- Weight
- 0.66 lbs (0.3g)
Dimensions4.72" x 3.51" (120 x 89.4 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC12V/24VAC dual voltage
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Highlight masking exposure (HME)
- Yes
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 60dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off-x32 (disabled at 4K)
Wide dynamic range (WDR) dB120dB
White balanceYes
Dynamic range compression (DRC)Yes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes
LENS
- Focal length
- 3.6 ~ 10mm
- Field of view (FoV)
- 100.3 ~ 46.4°
Lens typeVari-focal p-iris lens
IR distance100ft range
- Image sensor
- 8MP 1/1.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H
- Resolution
- Max 3840 x 2160
- Video output
- 4K @ 15fps, 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
Active pixels3864(H) x 2176(V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd Video outputCVBS output for video testing
