Digital Watchdog

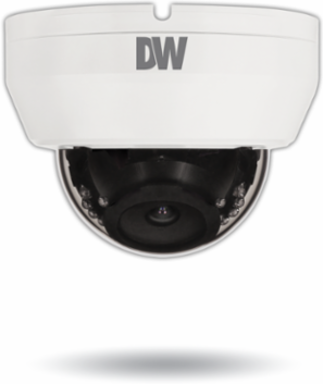

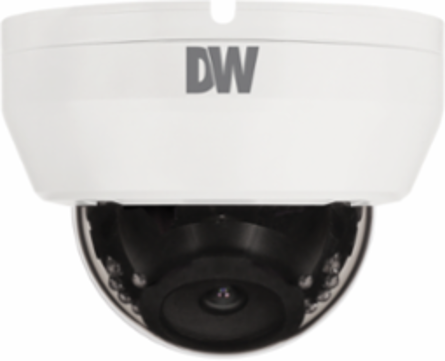

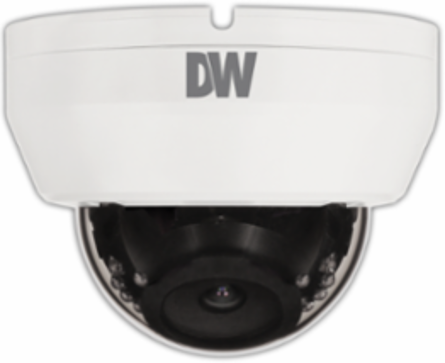

Digital Watchdog DWC-D3853WTIRW 4K Indoor Dome Camera with 2.8mm Fixed Lens, WDR, IR, 100ft Range

4K Indoor Dome Camera with 2.8mm Fixed Lens, WDR, IR, 100ft Range
4K Indoor Dome Camera with 2.8mm Fixed Lens, WDR, IR, 100ft Range
4K Indoor Dome Camera with 2.8mm Fixed Lens, WDR, IR, 100ft Range
  • MPN: DWC-D3853WTIRW
  • PPN: DWD-DWC-D3853WTIRW
In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$483.61/ EA

Description

Experience unparalleled surveillance capabilities with the Star-Light Plus™ UHDoC® 4K indoor dome camera from Digital Watchdog. Engineered with an advanced 8MP CMOS image sensor, this camera delivers stunning 4K resolution at 15 frames per second, ensuring every detail is captured with remarkable clarity. Its innovative Star-Light Plus™ technology allows for vibrant color imaging even in near-total darkness, while the integrated Smart DNR™ 3D digital noise reduction enhances image quality by minimizing noise in challenging lighting conditions. Designed for versatility, this dome camera features a 2.8mm fixed lens, providing a wide field of view of 106.5 degrees, making it ideal for monitoring expansive areas. With True Wide Dynamic Range (WDR) and advanced backlight compensation, it effectively manages varying light conditions, ensuring clear images in both bright and dark areas. The camera is also equipped with programmable privacy zones and features such as auto gain control and a true day/night mechanical IR cut filter, making it a comprehensive solution for indoor surveillance needs. Plus, with a robust five-year warranty and a range of certifications including FCC and CE, you can trust in its reliability and performance for years to come.

Features

  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/1.8" image sensor
  • 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • 100' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Easy icon-driven OSD menu with a built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • NDAA compliant
  • 5 year warranty

Specifications

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Other certifications
FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)

MECHANICAL

Material
Plastic indoor housing, polycarbonate dome
Weight
0.66 lbs (0.3g)
Dimensions4.72" x 3.51" (120 x 89.4 mm)
Warranty5 year warranty

ELECTRICAL

Power requirement
DC12V only

OPERATIONAL

Shutter mode
Auto
Backlight
Yes
Wide dynamic range (WDR)
True WDR, off, on
Smart DNR™ 3D digital noise reduction
3D/2D DNR
Highlight masking exposure (HME)
Yes
Day / night
Auto, day (color), night (B/W)
Auto gain control
Max 60dB
Privacy zones
Yes
Gamma
0.45
RS485 / UTP built-in
UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off-x32 (disabled at 4K)
Wide dynamic range (WDR) dB120dB
White balanceYes
Dynamic range compression (DRC)Yes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes

LENS

Focal length
2.8mm
Field of view (FoV)
106.5°
Lens typeFixed lens
IR distance100ft range


Image sensor
8MP 1/1.8" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H
Resolution
Max 3840 x 2160
Video output
4K @ 15fps, 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
Active pixels3864(H) x 2176(V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd Video outputCVBS output for video testing
