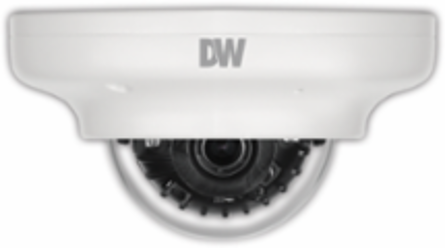

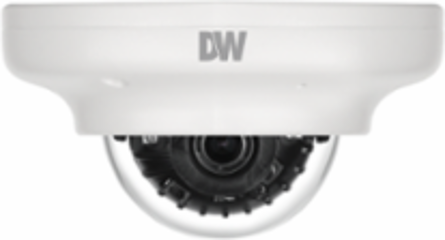

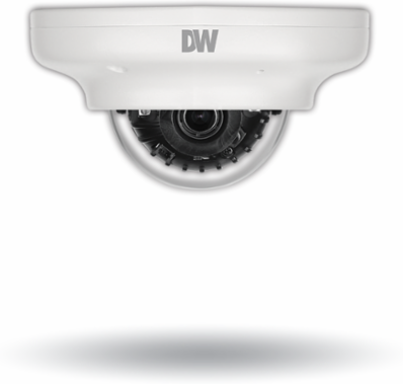

Digital Watchdog DWC-V7553WTIR Star-Light Plus™ UHDoC® 5MP ultra low-profile vandal dome camera with 4.0mm fixed lens and IR and color in near-total darkness and IR
Digital Watchdog DWC-V7553WTIR Star-Light Plus™ UHDoC® 5MP ultra low-profile vandal dome camera with 4.0mm fixed lens and IR and color in near-total darkness and IR
- MPN: DWC-V7553WTIR
- UPC: 812226030170
- PPN: DWD-DWC-V7553WTIR
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$359.84/ EA
Description

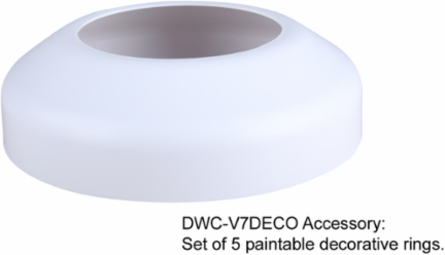

Featuring Star-Light Plus™ color in near-total darkness, 5MP Star-Light Plus™ Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The ultra low-profile weather-resistant vandal dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW® Universal HD over Coax® cameras are engineered to work with our VMAX® A1 Plus™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution. Set of five (5) white decorative rings for our MEGApix® and Star-Light Plus™ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- Ultra low-profile vandal dome housing
- 50' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP66 environmental-rated dust-tight and water-resistant
- Other certifications
- FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK 10-rated impact-resistant
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Weight
- 0.88 lbs (0.4kg)
Dimensions4.13" x 2.38" (105 x 60.7mm; )
ELECTRICAL
- Power requirement
- DC12V only
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 72dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off – x32
Wide dynamic range (WDR) dB120dB
White balanceYes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes
LENS
- Focal length
- 4.0mm
- Field of view (FoV)
- 82°
Lens typeFixed lens
IR distance50ft range
- Image sensor
- 5MP 1/2.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Resolution
- 2592 x 1944 (5MP)
- Video output
- HD-Analog and HD-TVI - 5MP/1944p @ 20fps and 12.5fps; HD-Analog, HD-TVI and HD-CVI - 4MP/1440p @ 30fps
Active pixels2608 (H) x 1960 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd video outputCVBS output for video testing
