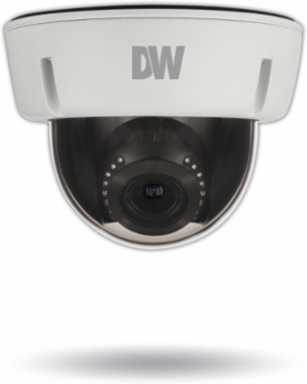

Star-Light™ UHDoC® 2.1MP Vandal Dome Camera, 2.8~12mm Lens, IP66, IR 100ft
Digital Watchdog

Digital Watchdog DWC-V6263WTIR Star-Light™ UHDoC® 2.1MP Vandal Dome Camera, 2.8~12mm Lens, IP66, IR 100ft

  • MPN: DWC-V6263WTIR
  • UPC: 813379019814
  • PPN: DWD-DWC-V6263WTIR

CAD

$477.87

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Star-Light™ UHDoC® vandal dome camera from Digital Watchdog is a robust surveillance solution designed to meet the demands of any security environment. Featuring a 2.1MP/1080p image sensor and a versatile 2.8 to 12mm vari-focal p-iris lens, this camera delivers exceptional clarity and detail at real-time 30fps, even in low-light conditions thanks to its advanced Star-Light™ technology. With an IP66 rating, it is both weatherproof and tamper-resistant, making it ideal for outdoor installations, while its IK10-rated impact resistance ensures durability against vandalism. Equipped with intelligent features such as true wide dynamic range (WDR), Smart DNR™ 3D digital noise reduction, and programmable privacy zones, this camera provides flexibility and reliability in various lighting conditions. Additionally, the easy-to-navigate OSD menu and built-in joystick enhance user experience, allowing for straightforward adjustments and settings management. Whether you are monitoring a commercial space or enhancing home security, this camera stands out as a dependable choice for comprehensive surveillance needs.

Features

  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
  • Star-Light™ super low light technology
  • 2.1MP/1080p 1/3" image sensor at real-time 30fps
  • 2.8~12mm varifocal p-iris lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • CleanView™ hydrophobic dome coating repels water, dust and grease
  • 100' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Highlight masking exposure (HME)
  • Auto-sensing 24VAC/12VDC with line lock
  • Easy icon-driven OSD menu with built-in joystick
  • Programmable Privacy Zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • UL listed
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 10-rated impact-resistant
  • 5 year warranty

Documentation & Downloads

Specifications

Key Specifications

Image sensor
2.1MP/1080p 1/3" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Resolution
1920 x 1080 (1080p)
Video output
HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
Focal length
2.8 ~ 12mm
Field of view (FoV)
91 - 28°
Shutter mode
Auto, manual, FLC
Backlight
On, off
Wide dynamic range (WDR)
True WDR, off, on
Dynamic range compressor (DRC)
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Mirror / flip
Yes
Motion detection
Yes
Sharpness
0 ~ 10
De-fog
On, off
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
IP rating
IP66 certified weather and tamper resistant
Other certifications
FCC, CE, ROHS
Material
Aluminum vandal housing, polycarbonate dome
Weight
1.65lbs (0.75kg)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
Alarm output1 alarm output
Lens typeVarifocal p-iris lens
IR distance100ft range
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off, x2 – x32
Wide dynamic range (WDR) dB100dB
Smart DNR™ 3D digital noise reductionOff, low, middle, high
Day / nightAuto, day (color), night (B/W)
Auto gain control0~10
Privacy zones16 programmable privacy zones
Gamma0.45 ~ 0.75
RS485 / UTP built-inPelco D / Pelco C
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant
Power requirementDC12V/AC24V dual voltage
Dimensions5.7" x 4.26" (145 x 108.3 mm)
