Description

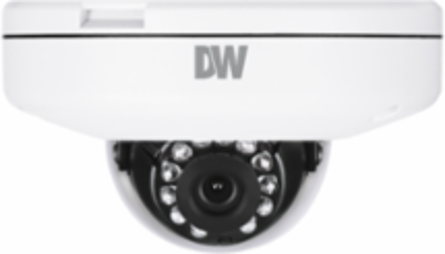

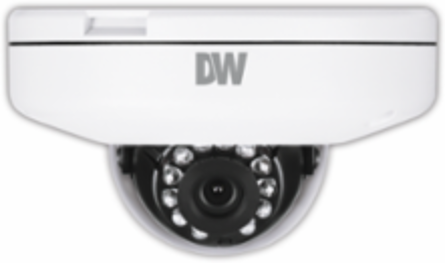

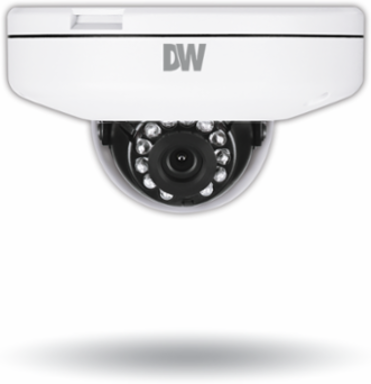

Experience advanced surveillance capabilities with the MEGApix® IVA™ 5MP ultra low-profile vandal dome IP camera, designed by Digital Watchdog. This state-of-the-art camera features a robust aluminum vandal housing and a polycarbonate dome, ensuring durability while maintaining a sleek appearance. With its exceptional Star-Light Plus™ technology, it delivers vibrant color images even in near-total darkness, complemented by a powerful infrared capability that extends visibility up to 50 feet.
Engineered for versatility, this camera supports multiple fixed lens options (4.0mm, 6.0mm, and 8.0mm), allowing for tailored installation based on specific monitoring needs. It boasts a wide dynamic range (WDR) of 120dB, ensuring clear image quality in varying lighting conditions. Additionally, the MEGApix® IVA™ camera is equipped with intelligent video analytics, auto gain control, and dual-streaming capabilities, making it an ideal choice for both residential and commercial applications. With a host of features including two-way audio, programmable privacy zones, and a 5-year warranty, this camera stands out as a reliable solution for your security needs.
Features
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4.0mm fixed lens (DWC-MF5Wi4TW)
- 6.0mm fixed lens (DWC-MF5Wi6TW) (coming soon)
- 8.0mm fixed lens (DWC-MF5Wi8TW) (coming soon)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.92 lbs (0.42kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 5.9W; PoE - max 7.2W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 4.0mm, F2.0 (DWC-MF5Wi4TW); 6.0mm, F2.0 (DWC-MF5Wi6TW); (coming soon); ; 8.0mm, F2.0 (DWC-MF5Wi8TW) (coming soon);
- Field of view (FoV)
- 82.3° (DWC-MF5Wi4TW); 51.9° (DWC-MF5Wi6TW); (coming soon); ; 37.8° (DWC-MF5Wi8TW) (coming soon)
Lens typeFixed lens
IR distance50ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps, multi-rate for preview and recording
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
- Image sensor
- 5MP 1/2.8” Star-Light Plus CMOS
- Video output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels2592(H) X 1944(V)
