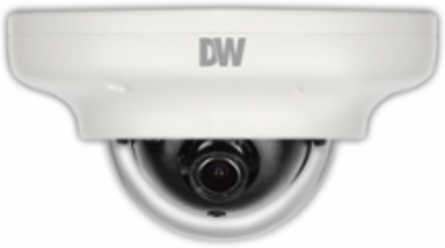

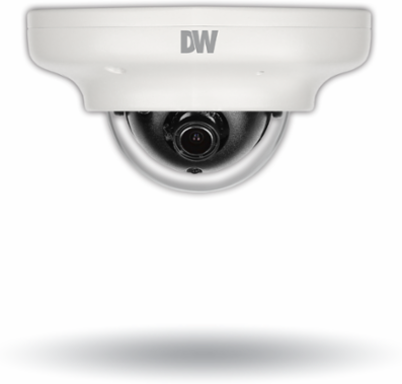

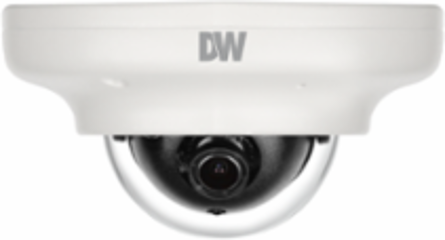

Digital Watchdog DWC-V7553W 5MP Ultra Low-Profile Vandal Dome Camera 2.8mm Lens, IP66, WDR
- MPN: DWC-V7553W
- UPC: 812226031108
- PPN: DWD-DWC-V7553W
CAD
$339.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Experience unparalleled surveillance capabilities with the Star-Light PlusTM UHDoC 5MP ultra low-profile vandal dome camera from Digital Watchdog. Designed to deliver exceptional clarity and color even in near-total darkness, this camera features advanced Star-Light PlusTM technology, ensuring reliable performance under challenging lighting conditions. Its robust construction includes an aluminum vandal housing and a polycarbonate dome, making it both IP66-rated for dust and water resistance and IK 10-rated for impact resistance, perfect for any environment. With a 2.8mm fixed lens and true wide dynamic range (WDR), this camera captures detailed images with a resolution of 2592 x 1944 pixels, while Smart DNRTM 3D digital noise reduction ensures crisp visuals. Whether you need motion detection, programmable privacy zones, or easy control through an icon-driven OSD menu, this camera is engineered to meet your security needs with reliability and precision.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.8mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- Ultra low-profile vandal dome housing
- Smart DNR™ 3D digital noise reduction
- De-Fog™ extreme weather image compensation
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
Key Specifications
| Image sensor | 5MP 1/2.8" CMOS |
|---|---|
| Scanning system | Progressive scan |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support |
| Resolution | 2592 x 1944 (5MP) |
| Focal length | 2.8mm |
| Field of view (FoV) | 103° |
| Shutter speed | 1/30-1/30,000 |
| Star-Light (sense-up) | Off – x32 |
| Wide dynamic range (WDR) dB | 120dB |
| White balance | Yes |
| Mirror / flip | Yes |
| Motion detection | Yes |
| Sharpness | Yes |
| De-fog | Yes |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| IP rating | IP66 environmental-rated dust-tight and water-resistant |
| Power requirement | DC12V only |
| Dimensions | 4.13" x 2.38" (105 x 60.7mm; ) |
| Active pixels | 2608 (H) x 1960 (V) |
|---|---|
| Frequency | 60Hz / 50Hz |
| Synchronization | Internal |
| S/N ratio | 55dB |
| Lens type | Fixed lens |
| Shutter mode | Auto |
| Backlight | Yes |
| Wide dynamic range (WDR) | True WDR, off, on |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| Day / night | Auto, day (color), night (B/W) |
| Auto gain control | Max 72dB |
| Privacy zones | Yes |
| Gamma | 0.45 |
| RS485 / UTP built-in | UTC |
| Operating humidity | 10–90% RH (non–condensing) |
| Other certifications | FCC, CE, ROHS |
| Material | Aluminum vandal housing, polycarbonate dome |
| Weight | 0.88 lbs (0.4kg) |
