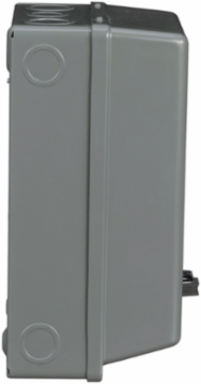

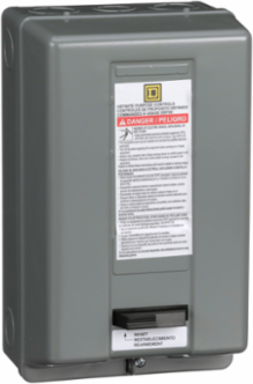

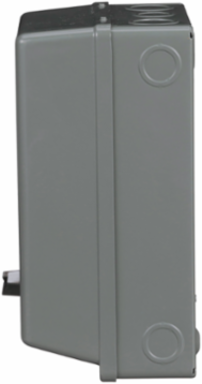

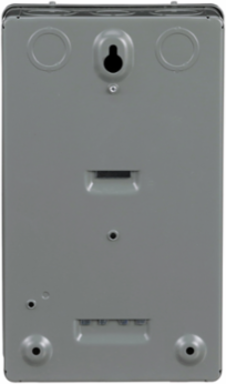

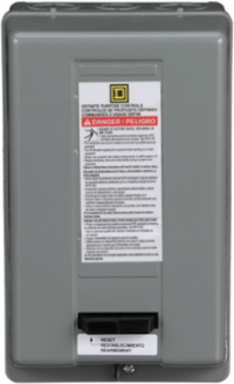

Square D 8911DPSG33V02 Definite Purpose Starter, 30A, 3 Pole, 3 Phase, NEMA 1
- MPN: 8911DPSG33V02
- UPC: 785901081494
- PPN: SCH-8911DPSG33V02
CAD
$446.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for efficient control in various industrial applications, this definite purpose starter by Schneider Electric is designed to handle up to 30A across three poles in a three-phase configuration. Its NEMA 1 enclosure ensures suitability for indoor environments, providing reliable protection and functionality. The starter is particularly ideal for motor control, making it a vital component in automation and control systems, where dependability is key. With Schneider Electric's reputation for quality, this unit promises to deliver both performance and durability for your operational needs.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 600 V AC
- Motor Power Hp
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phases || 15-15 hp 460 V AC, 3 phases || 20-20 hp 575 V AC, 3 phases
- Poles
- 3P
- Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Number of Thermal Units Required
- 3
- Enclosure Material
- painted sheet steel
- EU RoHS Directive
- Compliant with Exemptions
- Reach Regulation
- Contains SVHC above threshold
Rated Current30 A
Network Number of Phases3 phases
Locked Rotor Rated Current180 A 230 V AC || 150 A 460 V AC || 120 A 575 V AC
Thermal Overload Typemelting alloy
Enclosure RatingNEMA 1
Mercury FreeYes
China RoHS RegulationProduct out of China RoHS scope
