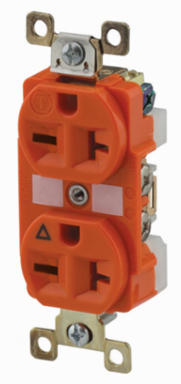

Bryant BRY5462IG Duplex Receptacle, 20A 250V, 2-Pole 3-Wire, 6-20R, Orange, Isolated Ground
- MPN: BRY5462IG
- UPC: 781786005426
- PPN: HBL-BRY5462IG
- UNSPSC: 39121406
CAD
$97.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Orange, Single Pack, Isolated Ground
Features
- Duplex
- Commercial/Industrial Grade
- 20A 250V
- 2-Pole 3-Wire Grounding
- 6-20R
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- 6-20R
- Number of Wires
- 3-Wire
- Special Features
- Isolated Ground
- Color
- Orange
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Voltage Rating Description
- 250 V
- Width
- 1.54 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Display Size
- Standard Sized Product
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Wattage
- 5000
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5462IG
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.35 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 25.000 lb.
- Lowest Level UOM
- Each
Number of Poles2-Pole
Size3.28 in x 1.54 in x 1.16 in
Country of OriginChina
Current / Amperage Rating20 A
Height1.16 in
Voltage Rating250 V
Weight0.25 lb.
Amperage Rating20 A
ConnectivityBack and Side Wired
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles2-Pole
PhaseSingle Phase
TypeDuplex Receptacle
Wire Size#14 AWG to #12 AWG
Description - InvoiceDUP RCPT, IG IND GRD, 20A 250V, 6-20R,OR
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A060
Current Rating20 A
SeriesExtra Heavy Duty
BOX SIZE2.700x8.600x5.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786005426
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
