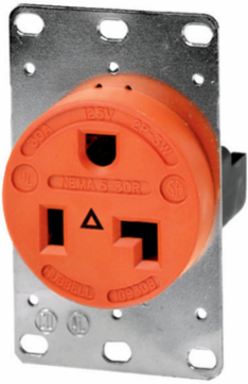

Hubbell Wiring Device-Kellems IG9308 Industrial Grade 2-Pole 3-Wire Grounding Flush Receptacle, 30A 125V, 5-30R, Orange
- MPN: IG9308
- UPC: 783585880709
- PPN: HBL-IG9308
- UNSPSC: 39121406
CAD
$133.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade , 2-Pole 3-Wire Grounding, 30A 125V, 5-30R, Orange, Single Pack.
Features
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
- Isolated Ground
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 3.68 in x 2.25 in x 2.23 in |
| Horsepower - Maximum | 2 |
| Length | 3.68 in |
| Amperage Rating | 30 A |
| Color | Orange |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Isolated Ground |
| Type | Single Receptacle |
| Wattage | 3750 W |
| Voltage Rating Description | 125 V |
| Width | 2.25 in |
| Connectivity | Back and Side Wired Screw Terminals |
| Nema Rating | 5-30R |
| Number Of Wires | 3-Wire |
| Style | Finder Groove Face |
| Description - Invoice | SGL RCPT, IG, 30A 125, 5-30R, OR |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic/Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.750 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 30 A |
|---|---|
| Height | 2.23 in |
| Industry Standard(s) | CSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186;WR Rating |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Application | Extra Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-30R |
| Number of Wires | 3-Wire |
| Size | 3.68 in x 2.25 in x 2.23 in |
| Standard | CSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186;WR Rating |
| Voltage Rating | 125 V |
| Wire Size | #12 AWG to #4 AWG |
| Weight | 0.45 lb. |
| Engineering Drawing 1 Display Text | IG9308 AutoCAD Drawing |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A080 |
| Current Rating | 30 A |
| Series | Straight Blade |
| BOX SIZE | 5.495x8.625x6.875 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585880709 |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
