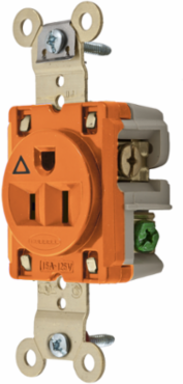

Hubbell Wiring Device-Kellems IG5261 Isolated Ground Receptacle, 15A 125V, 2-Pole 3-Wire, Orange
- MPN: IG5261
- UPC: 783585756493
- PPN: HBL-IG5261
- UNSPSC: 39121406
CAD
$81.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Isolated Ground, Receptacles, Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack
Features
- Triangle marking on face indicates isolated ground
- Patented bypass contact design
- Isolated Ground
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | IG5261 AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 1.19 in |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Application | Extra Heavy Duty Specification Grade |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Size | 3.28 in x 1.63 in x 1.19 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.2 lb. |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology FAQ |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A060 |
| Current Rating | 15 A |
| Series | Heavy Duty |
| BOX SIZE | 3.500x10.000x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585756493 |
| Case - Total Units | 100 EA |
| Each - Pack Description | Each |
| Pallet Height | 50.625 in |
| Pallet Weight | 1040.000 lb. |
| NAICS Code | 335931A102 |
| Country of Origin | United States |
|---|---|
| Dimensions | 3.28 in x 1.63 in x 1.19 in |
| Horsepower - Maximum | 0.5 |
| Length | 3.28 in |
| Amperage Rating | 15 A |
| Color | Orange |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Isolated Ground |
| Type | Single Receptacle |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Width | 1.63 in |
| Connectivity | Back and Side Wired Screw Terminals |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Style | Finder Groove Face |
| Description - Invoice | SGL RCPT, IG, 15A 125V, 5-15R, OR |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.35 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 20.000 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
