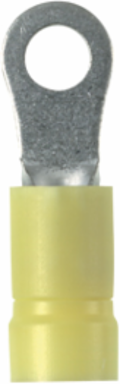

Panduit EV10-38RB-Q StrongHold™ EV10-38RB-Q Ring Terminal
- MPN: EV10-38RB-Q
- UPC: 074983281886
- PPN: PAN-EV10-38RB-Q
- UNSPSC: 39121409
CAD
$0.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Ring Terminal, vinyl insulated, 12 - 10 AWG, #3/8" Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Wire Insulation Diameter (In.)
- 0.23
- For Use With
- CT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-255
- Minimum Metric Conductor Size (mm²)
- 1.5
- Flammability Rating
- UL 587 H
- Maximum Wire Insulation Diameter (mm)
- 5.8
- Stud Hole Size (mm)
- 9.5
- Tongue Length (In.)
- 0.66
- Stud Hole Size (In.)
- 3/8
- Tongue Thickness (In.)
- 0.04
- Overall Width (In.)
- 0.58
- Minimum Wire Insulation Diameter (mm)
- 9.9
- Overall Length (In.)
- 1.31
- Tongue Width (mm)
- 14.7
- Minimum Operating Temperature (°F)
- 221
- Insulation Material
- Vinyl
- Barrel Length (In.)
- 0.51
- Outer Diameter (mm)
- 10.4
- Insulation Diameter (mm)
- 5.8
- Outer Diameter (In.)
- 0.41
- Wire Strip Length (mm)
- 7.9
- Insulation Diameter (In.)
- 0.23
- Base Material
- Copper
- Copper Conductor Size
- 12-10 AWG
Any Reason Not to SellN
Wire Strip Length (In.)5/16
Barrel TypeFunnel Entry
Stud Size3/8"
Tongue Length (mm)16.6
Color CodeYellow
Minimum Operating Temperature (°C)105
Maximum Voltage (V)600
Barrel Length (mm)13
Tongue Thickness (mm)1
Maximum Operating Temperature (°C)105
Finish/CoatingTin-Plated
Packaging TypeBag
Maximum Metric Conductor Size (mm²)6
Seam TypeButted
Maximum Voltage (kV)0.6
Overall Width (mm)14.7
Minimum Wire Insulation Diameter (In.)0.39
Product TypeRing Terminal
Tongue Width (In.)0.58
Sub BrandStrongHold™
Maximum Operating Temperature (°F)221
Overall Length (mm)33.3
Wire Size12-10 AWG
Packaging Details
- UPC
- 07498328188
- Standard Package Volume Ft3
- 0.0095
- Std Package Height In
- .85
- Std Package Length In
- 4.55
- Std Package Width In
- 2.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.0950
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.35
- Std Ctn Qty
- 250
- EAN
- 00074983281886
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983281886
Standard Package Weight Pounds0.1650
Std Package Height MM21.59
Std Package Length MM115.57
Std Package Width MM74.93
UOM EA PKPK
GTIN Carton50074983281881
Standard Carton Weight Pounds1.6500
Std Carton Height MM110.49
Std Carton Length MM232.41
Std Carton Width MM110.49
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty250.0000
Pallet Volume0.000000
RoHS CompliantCompliant
