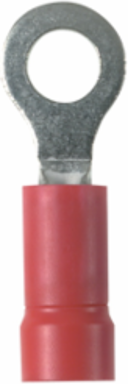

Panduit EV18-10RB-L StrongHold™ EV18-10RB-L Ring Terminal
- MPN: EV18-10RB-L
- UPC: 074983281961
- PPN: PAN-EV18-10RB-L
- UNSPSC: 39121409
CAD
$0.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Ring Terminal, vinyl insulated, 22- 18 AWG, #10 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Tongue Width (mm)
- 7.9
- Tongue Length (In.)
- 0.47
- Overall Length (In.)
- 0.94
- Minimum Wire Insulation Diameter (mm)
- 5.1
- Stud Size
- #10
- Maximum Operating Temperature (°C)
- 105
- Maximum Operating Temperature (°F)
- 221
- Maximum Wire Insulation Diameter (In.)
- 0.15
- Sub Brand
- StrongHold™
- Packaging Type
- Bag
- Tongue Thickness (In.)
- 0.03
- Base Material
- Copper
- Minimum Metric Conductor Size (mm²)
- 0.5
- Wire Strip Length (mm)
- 7.9
- Color Code
- Red
- Finish/Coating
- Tin-Plated
- Overall Width (In.)
- 0.31
- Wire Strip Length (In.)
- 5/16
- Overall Length (mm)
- 23.9
- Stud Hole Size (In.)
- #10
- Outer Diameter (In.)
- 0.25
- Minimum Operating Temperature (°C)
- 105
- Wire Size
- 22-18 AWG
Any Reason Not to SellN
Tongue Width (In.)0.31
Maximum Voltage (V)600
Insulation MaterialVinyl
Barrel Length (In.)0.39
Barrel Length (mm)9.9
Maximum Voltage (kV)0.6
Stud Hole Size (mm)4.8
Minimum Operating Temperature (°F)221
Tongue Length (mm)11.9
Minimum Wire Insulation Diameter (In.)0.2
Seam TypeButted
Barrel TypeFunnel Entry
Flammability RatingUL 587 H
Overall Width (mm)7.9
Insulation Diameter (In.)0.15
Product TypeRing Terminal
For Use WithCT-100A, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-400
Tongue Thickness (mm)0.8
Outer Diameter (mm)6.4
Insulation Diameter (mm)3.8
Maximum Metric Conductor Size (mm²)1
Maximum Wire Insulation Diameter (mm)3.8
Copper Conductor Size22-18 AWG
Packaging Details
- UPC
- 07498328196
- Standard Package Volume Ft3
- 0.0100
- Std Package Height In
- .8
- Std Package Length In
- 4.55
- Std Package Width In
- 2.7
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0996
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 500
- EAN
- 00074983281961
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983281961
Standard Package Weight Pounds0.1350
Std Package Height MM20.32
Std Package Length MM115.57
Std Package Width MM68.58
UOM EA PKPK
GTIN Carton50074983281966
Standard Carton Weight Pounds1.3500
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
