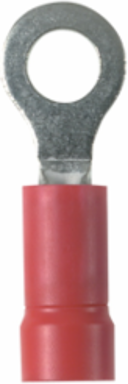

Panduit EV18-6RB-Q StrongHold™ EV18-6RB-Q Ring Terminal, Red, Vinyl, 11/100" Stud, 22-18 AWG, PK25
- MPN: EV18-6RB-Q
- UPC: 613056367357
- PPN: PAN-EV18-6RB-Q
- UNSPSC: 39121409
CAD
$0.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV18-6RB-Q Contractor Grade Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 22-18 AWG, compatible with #6 Stud (M3.5), are red in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Stud Size
- #6
- Insulation Diameter (mm)
- 3.8
- Wire Strip Length (In.)
- 5/16
- Minimum Operating Temperature (°C)
- 105
- Product Type
- Ring Terminal
- Insulation Diameter (In.)
- 0.15
- Maximum Operating Temperature (°F)
- 221
- For Use With
- CT-100A, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-409
- Barrel Length (In.)
- 0.35
- Stud Hole Size (In.)
- #6
- Base Material
- Copper
- Tongue Width (In.)
- 0.25
- Color Code
- Red
- Minimum Operating Temperature (°F)
- 221
- Tongue Thickness (In.)
- 0.03
- Wire Strip Length (mm)
- 7.9
- Flammability Rating
- UL 587 H
- Packaging Type
- Bag
- Overall Width (In.)
- 0.25
- Maximum Wire Insulation Diameter (mm)
- 3.8
- Maximum Voltage (V)
- 600
- Minimum Wire Insulation Diameter (mm)
- 3.8
- Wire Size
- 22-18 AWG
Any Reason Not to SellN
Barrel TypeFunnel Entry
Stud Hole Size (mm)3.5
Tongue Width (mm)6.4
Maximum Voltage (kV)0.6
Overall Length (In.)0.86
Barrel Length (mm)8.9
Seam TypeButted
Outer Diameter (In.)0.25
Insulation MaterialVinyl
Overall Length (mm)21.8
Overall Width (mm)6.4
Sub BrandStrongHold™
Maximum Operating Temperature (°C)105
Outer Diameter (mm)6.4
Maximum Metric Conductor Size (mm²)1
Maximum Wire Insulation Diameter (In.)0.15
Tongue Length (In.)0.43
Minimum Wire Insulation Diameter (In.)0.15
Finish/CoatingTin-Plated
Minimum Metric Conductor Size (mm²)0.5
Tongue Length (mm)10.9
Tongue Thickness (mm)0.8
Copper Conductor Size22-18 AWG
Packaging Details
- UPC
- 61305636735
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .75
- Std Package Length In
- 4.55
- Std Package Width In
- 2.75
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.45
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00613056367357
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056367357
Standard Package Weight Pounds0.0500
Std Package Height MM19.05
Std Package Length MM115.57
Std Package Width MM69.85
UOM EA PKPK
GTIN Carton50613056367352
Standard Carton Weight Pounds0.5000
Std Carton Height MM113.03
Std Carton Length MM232.41
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
