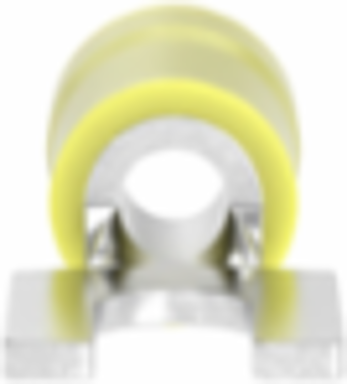

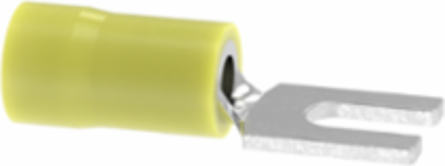

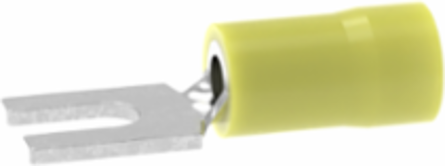

Panduit EV10-8FB-Q StrongHold™ EV10-8FB-Q Loose Piece Forks, Yellow, Vinyl, 4/25" Stud, 12-10 AWG
Panduit EV10-8FB-Q StrongHold™ EV10-8FB-Q Loose Piece Forks, Yellow, Vinyl, 4/25" Stud, 12-10 AWG
- MPN: EV10-8FB-Q
- UPC: 074983280193
- PPN: PAN-EV10-8FB-Q
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.45/ EA
Description

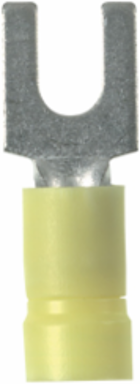

StrongHold EV10-8FB-Q Contractor Grade Vinyl Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. Accommodates 12-10 AWG wire gauge, compatible with #8 Stud, are yellow in color, and come in packages of 25.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Wire Strip Length (mm)
- 7.9
- Tongue Width (In.)
- 0.37
- Stud Hole Size (mm)
- 4.2
- Product Type
- Fork Terminal
- Color Code
- Yellow
- Seam Type
- Butted
- Wire Strip Length (In.)
- 5/16
- Minimum Voltage (V)
- 600
- Overall Width (In.)
- 0.37
- Maximum Wire Insulation Diameter (In.)
- 0.23
- Maximum Operating Temperature (°F)
- 221
- Flammability Rating
- UL587-H
- Barrel Type
- Funnel Entry
- Tongue Width (mm)
- 9.4
- Minimum Metric Conductor Size (mm²)
- 4
- Maximum Operating Temperature (°C)
- 105
- Insulation Diameter (mm)
- 5.7
- For Use With
- CT-100A*, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-400, CT- 460
- Minimum Voltage (kV)
- 0.6
- Stud Size
- #8
- Sub Brand
- StrongHold™
- Wire Size
- 12-10 AWG
Any Reason Not to SellN
Insulation MaterialVinyl
Barrel Length (In.)0.52
Maximum Metric Conductor Size (mm²)6
Fork TypeStandard
Overall Length (mm)26.4
Tongue Length (mm)13.2
Maximum Wire Insulation Diameter (mm)5.7
Minimum Operating Temperature (°F)221
Base MaterialCopper
Barrel Length (mm)13.2
Stud Hole Size (In.)#8
Tongue Thickness (mm)1
Tongue Length (In.)0.52
Minimum Operating Temperature (°C)105
Insulation Diameter (In.)0.23
Overall Width (mm)9.4
Tongue Thickness (In.)0.04
Maximum Voltage (V)600
Overall Length (In.)1.04
Finish/CoatingTin-Plated
Packaging TypeLoose Piece
Maximum Voltage (kV)0.6
Copper Conductor Size12-10 AWG
Packaging Details
- UPC
- 07498328019
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .9
- Std Package Length In
- 4.55
- Std Package Width In
- 3.05
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.35
- Std Ctn Qty
- 250
- EAN
- 00074983280193
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983280193
Standard Package Weight Pounds0.0500
Std Package Height MM22.86
Std Package Length MM115.57
Std Package Width MM77.47
UOM EA PKPK
GTIN Carton50074983280198
Standard Carton Weight Pounds0.5000
Std Carton Height MM110.49
Std Carton Length MM231.14
Std Carton Width MM110.49
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty250.0000
Pallet Volume0.000000
RoHS CompliantCompliant
