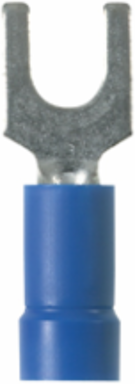

Panduit EV14-10FB-Q StrongHold™ EV14-10FB-Q Loose Piece Forks, Blue, Vinyl, 1/5" Stud, 16-14 AWG
- MPN: EV14-10FB-Q
- UPC: 613056366435
- PPN: PAN-EV14-10FB-Q
- UNSPSC: 39121409
CAD
$0.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
StrongHold EV14-10FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #10 Stud (M5), are blue in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Voltage (V)
- 600
- Maximum Voltage (kV)
- 0.6
- Wire Strip Length (mm)
- 7.9
- For Use With
- CT-100A, *CT-160, *CT-260, *CT-200, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
- Insulation Diameter (mm)
- 4.3
- Insulation Material
- Vinyl
- Minimum Voltage (kV)
- 0.6
- Maximum Wire Insulation Diameter (In.)
- 0.17
- Seam Type
- Butted
- Finish/Coating
- Tin-Plated
- Stud Size
- #10
- Insulation Diameter (In.)
- 0.17
- Tongue Thickness (In.)
- 0.03
- Wire Strip Length (In.)
- 5/16
- Minimum Operating Temperature (°F)
- 221
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Overall Width (mm)
- 8.6
- Sub Brand
- StrongHold™
- Barrel Type
- Funnel Entry
- Stud Hole Size (mm)
- 4.8
- Fork Type
- Standard
- Wire Size
- 16-14 AWG
Any Reason Not to SellN
Minimum Metric Conductor Size (mm²)1.5
Base MaterialCopper
Maximum Operating Temperature (°F)221
Color CodeBlue
Barrel Length (In.)0.46
Tongue Length (In.)0.46
Overall Width (In.)0.34
Stud Hole Size (In.)#10
Tongue Length (mm)11.7
Flammability RatingUL 587 H
Overall Length (mm)23.4
Minimum Voltage (V)600
Barrel Length (mm)11.7
Product TypeFork Terminal
Overall Length (In.)0.92
Maximum Metric Conductor Size (mm²)2.5
Maximum Operating Temperature (°C)105
Tongue Thickness (mm)0.8
Minimum Operating Temperature (°C)105
Tongue Width (In.)0.34
Packaging TypeLoose Piece
Tongue Width (mm)8.6
Copper Conductor Size16-14 AWG
Packaging Details
- UPC
- 61305636643
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .65
- Std Package Length In
- 4.55
- Std Package Width In
- 2.75
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.35
- Std Ctn Qty
- 250
- EAN
- 00613056366435
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056366435
Standard Package Weight Pounds0.0500
Std Package Height MM16.51
Std Package Length MM115.57
Std Package Width MM69.85
UOM EA PKPK
GTIN Carton50613056366430
Standard Carton Weight Pounds0.5000
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM110.49
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
