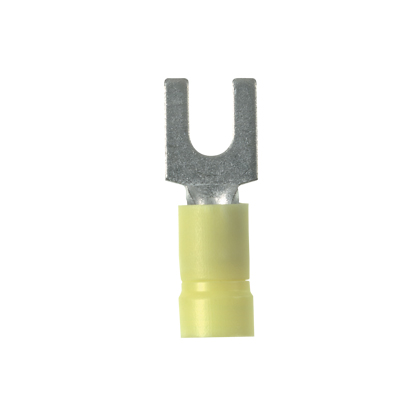

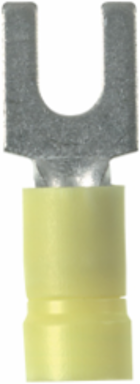

Panduit PV10-8F-L Pan-Term® PV10-8F-L Fork Terminal, Yellow, Vinyl, 10-14 AWG, #8 Stud, PK50
Panduit PV10-8F-L Pan-Term® PV10-8F-L Fork Terminal, Yellow, Vinyl, 10-14 AWG, #8 Stud, PK50
- MPN: PV10-8F-L
- UPC: 074983804122
- PPN: PAN-PV10-8F-L
- UNSPSC: 39121409
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.83/ EA
Description
The PV10-8F-L Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Packaging Details
- UPC
- 07498380412
- Standard Package Volume Ft3
- 0.0067
- Std Package Height In
- 1.9
- Std Package Length In
- 4.35
- Std Package Width In
- 1.9
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0668
- Std Carton Height In
- 4.4
- Std Carton Length In
- 10.1
- Std Carton Width In
- 4.5
- Std Ctn Qty
- 500
- EAN
- 00074983804122
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983804122
Standard Package Weight Pounds0.2550
Std Package Height MM48.26
Std Package Length MM110.49
Std Package Width MM48.26
UOM EA PKPK
GTIN Carton50074983804127
Standard Carton Weight Pounds2.5500
Std Carton Height MM111.76
Std Carton Length MM256.54
Std Carton Width MM114.3
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Metric Conductor Size (mm²)
- 6
- Packaging Type
- Bottle
- Flammability Rating
- UL 94 V-0
- Maximum Operating Temperature (°C)
- 105
- Base Material
- Copper
- Barrel Length (In.)
- 0.52
- Stud Hole Size (mm)
- 4
- Sub Brand
- Pan-Term®
- Tongue Width (mm)
- 9.4
- Fork Type
- Standard
- Maximum Wire Insulation Diameter (In.)
- 0.225
- Seam Type
- Brazed
- Stud Hole Size (In.)
- #8
- Wire Strip Length (mm)
- 7.9
- Tongue Thickness (mm)
- 1
- Overall Length (mm)
- 26.4
- Finish/Coating
- Tin-Plated
- Tongue Width (In.)
- 0.37
- Barrel Type
- Funnel Entry
- Copper Conductor Size
- 14-10 AWG
Any Reason Not to SellN
Stud Size#8
Overall Width (mm)9.4
Maximum Voltage (kV)0.6
For Use WithCT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Tongue Length (In.)0.52
Tongue Length (mm)13.2
Maximum Wire Insulation Diameter (mm)5.7
Maximum Voltage (V)600
Insulation TypeVinyl
Overall Length (In.)1.04
Product TypeFork Terminal
Minimum Metric Conductor Size (mm²)2.5
Insulation MaterialVinyl
Barrel Length (mm)13.2
Overall Width (In.)0.37
Wire Strip Length (In.)5/16
Color CodeYellow
Tongue Thickness (In.)0.04
Maximum Operating Temperature (°F)221
Wire Size14-10 AWG
