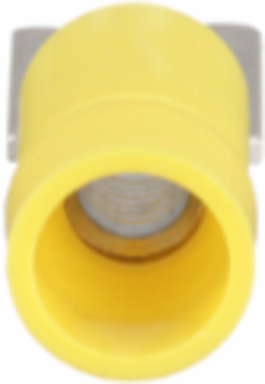

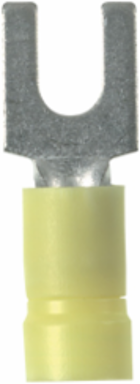

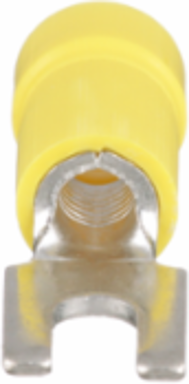

Panduit PV10-6F-L Pan-Term® PV10-6F-L Fork Terminal, Yellow, Vinyl, 10-14 AWG, #6 Stud, PK50
Panduit PV10-6F-L Pan-Term® PV10-6F-L Fork Terminal, Yellow, Vinyl, 10-14 AWG, #6 Stud, PK50
- MPN: PV10-6F-L
- UPC: 074983804368
- PPN: PAN-PV10-6F-L
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.82/ EA
Description
The PV10-6F-L Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Overall Length (In.)
- 1.01
- Outer Diameter (In.)
- 0.23
- Sub Brand
- Pan-Term®
- Barrel Length (In.)
- 0.41
- Maximum Metric Conductor Size (mm²)
- 6
- Wire Strip Length (mm)
- 7.9
- Flammability Rating
- UL94V-0
- Insulation Type
- Vinyl
- Stud Hole Size (In.)
- #6
- Product Type
- Fork Terminal
- Maximum Operating Temperature (°F)
- 221
- Maximum Voltage (kV)
- 0.6
- Tongue Thickness (mm)
- 1
- Tongue Width (mm)
- 7.9
- Overall Length (mm)
- 25.7
- Insulation Material
- Vinyl
- Fork Type
- Standard
- Tongue Length (mm)
- 15.4
- Stud Size
- #6
- Maximum Operating Temperature (°C)
- 105
- Wire Size
- 14-10 AWG
Any Reason Not to SellN
Packaging TypeBottle
Outer Diameter (mm)5.7
Tongue Width (In.)0.31
Overall Width (mm)7.9
Finish/CoatingTin-Plated
Seam TypeBrazed
Barrel Length (mm)10.3
Stud Hole Size (mm)3.5
Tongue Length (In.)0.61
Maximum Wire Insulation Diameter (mm)5.7
Base MaterialCopper
Color CodeYellow
Maximum Wire Insulation Diameter (In.)0.225
Minimum Metric Conductor Size (mm²)2.5
For Use WithCT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Wire Strip Length (In.)5/16
Overall Width (In.)0.31
Barrel TypeFunnel Entry
Maximum Voltage (V)600
Tongue Thickness (In.)0.04
Copper Conductor Size14-10 AWG
Packaging Details
- UPC
- 07498380436
- Standard Package Volume Ft3
- 0.0037
- Std Package Height In
- 1.8
- Std Package Length In
- 3.6
- Std Package Width In
- 1.75
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0368
- Std Carton Height In
- 3.7
- Std Carton Length In
- 9.45
- Std Carton Width In
- 3.75
- Std Ctn Qty
- 500
- EAN
- 00074983804368
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 50.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983804368
Standard Package Weight Pounds0.2500
Std Package Height MM45.72
Std Package Length MM91.44
Std Package Width MM44.45
UOM EA PKPK
GTIN Carton50074983804363
Standard Carton Weight Pounds2.5000
Std Carton Height MM93.98
Std Carton Length MM240.03
Std Carton Width MM95.25
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
