Panduit PV14-10F-C Pan-Term® PV14-10F-C Fork Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud, PK100
Panduit PV14-10F-C Pan-Term® PV14-10F-C Fork Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud, PK100
- MPN: PV14-10F-C
- UPC: 074983804108
- PPN: PAN-PV14-10F-C
- UNSPSC: 39121409
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.66/ EA
Description

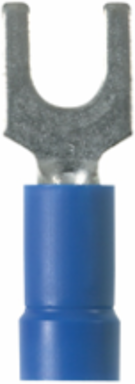

The PV14-10F-C Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Overall Width (mm)
- 8.6
- Maximum Metric Conductor Size (mm²)
- 2.5
- Seam Type
- Brazed
- Stud Hole Size (mm)
- 5
- Tongue Length (In.)
- 0.46
- Overall Length (mm)
- 23.4
- Maximum Voltage (kV)
- 0.6
- Barrel Length (mm)
- 11.7
- Overall Width (In.)
- 0.34
- Tongue Length (mm)
- 11.7
- Color Code
- Blue
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Barrel Type
- Funnel Entry
- Maximum Wire Insulation Diameter (In.)
- 0.17
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Finish/Coating
- Tin-Plated
- Tongue Width (In.)
- 0.3
- Insulation Type
- Vinyl
- Tongue Width (mm)
- 0.8
- Wire Size
- 16-14 AWG
Any Reason Not to SellN
Stud Hole Size (In.)#10
Maximum Operating Temperature (°C)105
Base MaterialCopper
Tongue Thickness (In.)0.03
Overall Length (In.)0.92
Minimum Metric Conductor Size (mm²)1.5
Maximum Voltage (V)600
Flammability RatingUL 94 V-0
Sub BrandPan-Term®
Wire Strip Length (mm)7.9
Product TypeFork Terminal
Tongue Thickness (mm)1
Fork TypeStandard
Barrel Length (In.)0.46
Insulation MaterialVinyl
Maximum Operating Temperature (°F)221
Wire Strip Length (In.)5/16
Stud Size#10
Packaging TypeBottle
Copper Conductor Size16-14 AWG
Packaging Details
- UPC
- 07498380410
- Standard Package Volume Ft3
- 0.0099
- Std Package Height In
- 1.9
- Std Package Length In
- 4.35
- Std Package Width In
- 1.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.0493
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.9
- Std Carton Width In
- 2.3
- Std Ctn Qty
- 500
- EAN
- 00074983804108
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 500.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983804108
Standard Package Weight Pounds0.3100
Std Package Height MM48.26
Std Package Length MM110.49
Std Package Width MM49.53
UOM EA PKPK
GTIN Carton50074983804103
Standard Carton Weight Pounds1.5500
Std Carton Height MM110.49
Std Carton Length MM251.46
Std Carton Width MM58.42
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
