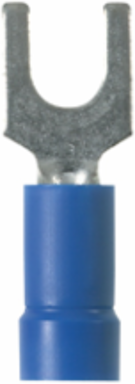

Panduit PV14-6F-C Pan-Term® PV14-6F-C Fork Terminal, Blue, Vinyl, 14-16 AWG, #6 Stud, PK100
Panduit PV14-6F-C Pan-Term® PV14-6F-C Fork Terminal, Blue, Vinyl, 14-16 AWG, #6 Stud, PK100
- MPN: PV14-6F-C
- UPC: 074983804061
- PPN: PAN-PV14-6F-C
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.66/ EA
Description
The PV14-6F-C Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Packaging Details
- UPC
- 07498380406
- Standard Package Volume Ft3
- 0.0067
- Std Package Height In
- 1.9
- Std Package Length In
- 4.35
- Std Package Width In
- 1.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.0337
- Std Carton Height In
- 4.35
- Std Carton Length In
- 10
- Std Carton Width In
- 2.05
- Std Ctn Qty
- 500
- EAN
- 00074983804061
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 500.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983804061
Standard Package Weight Pounds0.2800
Std Package Height MM48.26
Std Package Length MM110.49
Std Package Width MM49.53
UOM EA PKPK
GTIN Carton50074983804066
Standard Carton Weight Pounds1.4000
Std Carton Height MM110.49
Std Carton Length MM254
Std Carton Width MM52.07
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Stud Hole Size (In.)
- #6
- Barrel Type
- Funnel Entry
- Insulation Material
- Vinyl
- Maximum Voltage (V)
- 600
- Flammability Rating
- UL94V-0
- Stud Size
- #6
- Overall Length (mm)
- 21.3
- Maximum Wire Insulation Diameter (In.)
- 0.17
- Insulation Type
- Vinyl
- Fork Type
- Standard
- Tongue Length (In.)
- 0.42
- Product Type
- Fork Terminal
- Overall Length (In.)
- 0.84
- Tongue Length (mm)
- 10.7
- Maximum Voltage (kV)
- 0.6
- Tongue Thickness (In.)
- 0.03
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Tongue Thickness (mm)
- 0.8
- Maximum Metric Conductor Size (mm²)
- 2.5
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Wire Strip Length (mm)7.9
Maximum Wire Insulation Diameter (mm)4.3
Sub BrandPan-Term®
Overall Width (mm)7.1
Base MaterialCopper
Overall Width (In.)0.28
Barrel Length (mm)10.7
Seam TypeBrazed
Maximum Operating Temperature (°F)221
Color CodeBlue
Wire Strip Length (In.)5/16
Finish/CoatingTin-Plated
Tongue Width (mm)7.1
Minimum Metric Conductor Size (mm²)1.5
Maximum Operating Temperature (°C)105
Tongue Width (In.)0.28
Packaging TypeBottle
Stud Hole Size (mm)3.5
Barrel Length (In.)0.42
Wire Size16-14 AWG
