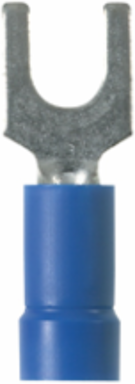

Panduit PV14-8F-C Pan-Term® PV14-8F-C Fork Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK100
Panduit PV14-8F-C Pan-Term® PV14-8F-C Fork Terminal, Blue, Vinyl, 14-16 AWG, #8 Stud, PK100
- MPN: PV14-8F-C
- UPC: 074983804085
- PPN: PAN-PV14-8F-C
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.65/ EA
Description
The PV14-8F-C Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Overall Width (In.)
- 0.31
- Stud Hole Size (mm)
- 4
- Packaging Type
- Bottle
- Stud Size
- #8
- Finish/Coating
- Tin-Plated
- Wire Strip Length (In.)
- 5/16
- Tongue Thickness (mm)
- 0.8
- Seam Type
- Brazed
- Wire Strip Length (mm)
- 7.9
- Tongue Length (mm)
- 22.9
- Product Type
- Fork Terminal
- Base Material
- Copper
- Minimum Metric Conductor Size (mm²)
- 1.5
- Maximum Operating Temperature (°F)
- 221
- Maximum Wire Insulation Diameter (In.)
- 0.17
- Insulation Material
- Vinyl
- Fork Type
- Standard
- Maximum Voltage (V)
- 600
- Insulation Type
- Vinyl
- Wire Size
- 16-14 AWG
Any Reason Not to SellN
Maximum Operating Temperature (°C)105
Maximum Voltage (kV)0.6
Barrel Length (In.)0.45
Tongue Length (In.)0.45
Sub BrandPan-Term®
Overall Width (mm)7.9
Flammability RatingUL94V-0
Maximum Wire Insulation Diameter (mm)4.3
Overall Length (mm)22.9
Color CodeBlue
Barrel Length (mm)11.4
Tongue Thickness (In.)0.03
Barrel TypeFunnel Entry
Overall Length (In.)0.9
Tongue Width (mm)7.9
Maximum Metric Conductor Size (mm²)2.5
For Use WithCT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Tongue Width (In.)0.31
Stud Hole Size (In.)#8
Copper Conductor Size16-14 AWG
Packaging Details
- UPC
- 07498380408
- Standard Package Volume Ft3
- 0.0099
- Std Package Height In
- 1.9
- Std Package Length In
- 4.35
- Std Package Width In
- 1.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.0493
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.9
- Std Carton Width In
- 2.3
- Std Ctn Qty
- 500
- EAN
- 00074983804085
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 500.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983804085
Standard Package Weight Pounds0.2500
Std Package Height MM48.26
Std Package Length MM110.49
Std Package Width MM49.53
UOM EA PKPK
GTIN Carton50074983804080
Standard Carton Weight Pounds1.2500
Std Carton Height MM110.49
Std Carton Length MM251.46
Std Carton Width MM58.42
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
