Panduit EV18-8RB-L StrongHold™ EV18-8RB-L Ring Terminal
- MPN: EV18-8RB-L
- UPC: 074983281954
- PPN: PAN-EV18-8RB-L
- UNSPSC: 39121409
CAD
$0.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

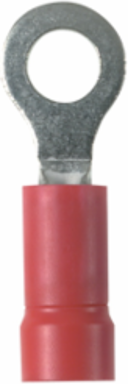

StrongHold™ Ring Terminal, vinyl insulated, 22 - 18 AWG, #8 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Operating Temperature (°F)
- 221
- Maximum Metric Conductor Size (mm²)
- 1
- Overall Width (In.)
- 0.31
- Maximum Voltage (kV)
- 0.6
- Tongue Length (mm)
- 11.6
- Maximum Wire Insulation Diameter (mm)
- 3.8
- Color Code
- Red
- Stud Hole Size (In.)
- #8
- Flammability Rating
- UL 587 H
- Minimum Metric Conductor Size (mm²)
- 0.5
- Minimum Wire Insulation Diameter (mm)
- 4.3
- Base Material
- Copper
- Barrel Length (In.)
- 0.39
- Sub Brand
- StrongHold™
- Overall Length (mm)
- 23.1
- Wire Strip Length (mm)
- 7.9
- Insulation Diameter (In.)
- 0.15
- Maximum Wire Insulation Diameter (In.)
- 0.15
- Overall Width (mm)
- 7.9
- Tongue Thickness (mm)
- 0.8
- Insulation Diameter (mm)
- 3.8
- Barrel Length (mm)
- 9.9
- Copper Conductor Size
- 22-18 AWG
Any Reason Not to SellN
Stud Hole Size (mm)4.1
Tongue Thickness (In.)0.03
Maximum Voltage (V)600
Wire Strip Length (In.)5/16
Minimum Operating Temperature (°F)221
Overall Length (In.)0.91
Tongue Length (In.)0.46
Tongue Width (In.)0.31
Outer Diameter (In.)0.25
Stud Size#8
Minimum Wire Insulation Diameter (In.)0.17
Outer Diameter (mm)6.4
Product TypeRing Terminal
Packaging TypeBag
For Use WithCT-100A, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-410
Finish/CoatingTin-Plated
Maximum Operating Temperature (°C)105
Insulation MaterialVinyl
Tongue Width (mm)7.9
Seam TypeButted
Minimum Operating Temperature (°C)105
Barrel TypeFunnel Entry
Wire Size22-18 AWG
Packaging Details
- UPC
- 07498328195
- Standard Package Volume Ft3
- 0.0097
- Std Package Height In
- 1
- Std Package Length In
- 4.55
- Std Package Width In
- 3.25
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0974
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 500
- EAN
- 00074983281954
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983281954
Standard Package Weight Pounds0.1400
Std Package Height MM25.4
Std Package Length MM115.57
Std Package Width MM82.55
UOM EA PKPK
GTIN Carton50074983281959
Standard Carton Weight Pounds1.4000
Std Carton Height MM111.76
Std Carton Length MM232.41
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
