Panduit PV18-6F-CY Pan-Term® PV18-6F-CY Fork Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK100

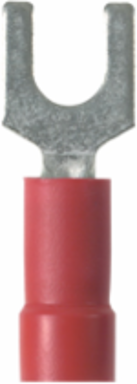

Pan-Term® PV18-6F-CY Fork Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK100
  • MPN: PV18-6F-CY
  • UPC: 074983690794
  • PPN: PAN-PV18-6F-CY
  • UNSPSC: 39121409

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$0.66/ EA

Description

The PV18-6F-CY Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Maximum Voltage
600 V
Copper Conductor Size
16-22 AWG
Stud Size
#6
Maximum Wire Insulation Diameter
0.15 in. (3.8 mm)
Overall Width
0.3 in. (7.6 mm)
Tongue Length
0.43 in. (10.9 mm)
Tongue Thickness
0.03 in. (0.8 mm)
Finish/Coating
Tin-Plated
Base Material
Copper
Flammability Rating
UL 94 V-0
RoHS Compliance
Compliant
Sub Brand
Pan-Term4
Maximum Operating Temperature105 C (221 F)
Fork TypeStandard
Wire Strip Length5/16 in. (7.9 mm)
Overall Length0.86 in. (21.8 mm)
Barrel Length0.43 in. (10.9 mm)
Tongue Width0.3 in. (7.6 mm)
Insulation MaterialVinyl
Seam TypeBrazed
ColorRed
Standards MetUL Listed 587H E52164, CSA Certified LR31212
Country of OriginMexico
