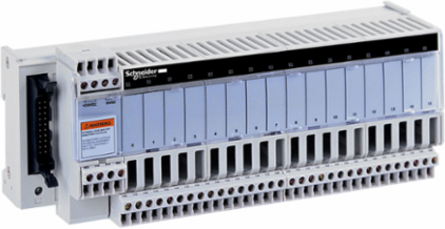

Schneider Electric ABE7P16T230 ABE7 Sub-Base for Plug-In Relay, 16 Channels, 10 mm Relay, 0.655 kg
- MPN: ABE7P16T230
- PPN: SCH-ABE7P16T230
CAD
$367.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with plug-in relays (relay size 10mm) for 16 channels, with integral NO or C/O contact, with 2 terminals per channel. Its control circuit voltage is 24VDC. It makes use of the sub-base functions to connect the channel without the need to adapt the channel using a relay. It is furnished with screw terminal for electrical connection, with a 20-way HE10 connector, without relays. It can accept both electromechanical and solid state relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a plug-in relay sub-base with IP20 degree of protection. It weighs 0.655kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with ABE7 sub-bases and ABR7 and ABS7 relays. It is delivered in 1 package (PCE type). Plug-in relays (size 10mm) are to order separately. Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia, United States
Complementary Attributes
- Maximum Current Per Output Common
- 16 A
Maximum Supply Current1 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- CSA, DNV, GL, UL, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.09376181647236258, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.16628157606491, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 972 kg CO2 eq., 971.7360356355297
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Installation Category
- II IEC 60664-1
- Polarity Distribution
- volt-free
- Product Or Component Type
- sub-base for plug-in relay
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Returnability
- No
- Software Version
- v6.2.5-6
- Supply Circuit Type
- DC
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Vibration Resistance
- 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2102.4
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ui] Rated Insulation Voltage
- 300 V coil circuit/contact circuits IEC 60947-12000 V terminals/mounting rails
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
- Sub-base Type
- output sub-base
- Package Weight(Lbs)
- 628.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm² 28 AWG...16 AWG) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm² 28 AWG...20 AWG) flexible with cable endscrew type terminals, 2 x 0.2...2 x 2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.3518927642173233
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.612994701682656
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1212029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels16
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon ABE7
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Status Led1 LED per channel (Green) channel status1 LED (Green) power ON
Sustainable PackagingNo
Total Lifecycle Carbon Footprint991 kg CO2 eq.
Voltage Drop On Power Supply Fuse0.3 V
Pep CodeENVPEP1212029_V4
Pep Verification Date2026-06-18
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %6
[Uimp] Rated Impulse Withstand Voltage2.5 kV
Short-circuit Protection1 A internal fuse, 5 x 20 mm, fast blow PLC end)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Product Compatibility
- ABE7ACC20, ABS7SA2., ABR7S2., ABS7SC2.
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1212029EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Take BackNo
China Rohs RegulationX
Carbon Footprint990.9609664939669
Environmental DisclosureENVPEP1212029_V4
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1212029_V4
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- sub-base for plug-in relay
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Output Attributes
- Maximum Current Per Output Common
- 16 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
