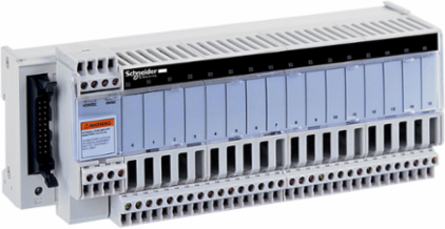

Schneider Electric ABE7S16E2E1 Solid State Output Relay Sub-Base, 16 Inputs, 48 V DC
- MPN: ABE7S16E2E1
- PPN: SCH-ABE7S16E2E1
CAD
$668.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed solid-state relays for 16 channels, with 2 terminals per channel. Its control circuit voltage is 48VDC. It provides a digital input control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.370kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia, United States
Complementary Attributes
- Maximum Switching Current
- 15 mA PLC end)
Minimum Switching Current1 mA for PLC end
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current State 1 Guaranteed
- >= 6 mA sensor end), >= 6 mA sensor end)>= 6 mA sensor end), >= 6 mA sensor end)
- Switching Frequency
- <= 1000 Hz 50 %, <= 1000 Hz 50 %<= 1000 Hz 50 %, <= 1000 Hz 50 %
- Certificate Agency
- CSA, UL, DNV, GL, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06658880596604093, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.11809169255565263, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 49 kg CO2 eq., 48.58680178177649
- Local Publishable Date
- 2026-03-31
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Dielectric Strength
- 2000 V 50/60 Hz IEC 60947-1
- Installation Category
- II IEC 60664-1
- Number Of Terminal Per Channel
- 2
- Product Or Component Type
- solid state input relay sub-base
- Range Of Product
- Modicon ABE7
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Voltage Limits
- 19-30 V DC PLC end)IEC 61131-2
- Terminal Block Type
- removable
- Total Lifecycle Carbon Footprint
- 62 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 105.12
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ui] Rated Insulation Voltage
- 2000 V
- [Us] Rated Supply Voltage
- 24 V DC PLC end)48 V DC sensor end)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Response Time<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0
Voltage State 1 Guaranteed>= 30 V sensor end, >= 30 V sensor end>= 30 V sensor end, >= 30 V sensor end
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 0.9601021860524301
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 12.50859177858354
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1212029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Current Per Channel0.013 A
Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels16
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typeinternal fuse 1 A 5 x 20 mm fast blow PLC endadjustable by external fuse fast blow sensor end
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire750 °C IEC 60695-2-11
ReturnabilityNo
Software Versionv6.2.5-6
Sustainable PackagingNo
Tightening Torque0.6 N.m flat Ø 3.5 mm
Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1212029_V4
Pep Verification Date2026-06-18
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %6
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Isolation Plc/Operative Partyes
Package Weight(Lbs)446.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 62.240176244934155
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- solid state input relay sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC001284
ETIM 9EC001284
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
