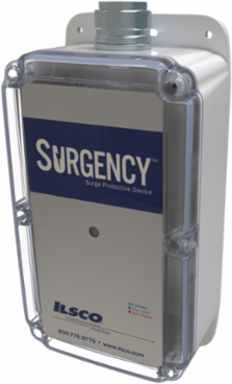

Surge Protector 3 Phase Delta System, 100kA Surge Current, 600V, 10 AWG Wire

Documentation & Downloads

ILSCO XE-100-3N6X-B Surge Protector 3 Phase Delta System, 100kA Surge Current, 600V, 10 AWG Wire

MPN: XE-100-3N6X-B
UPC: 783669011241
PPN: ILC-XE-100-3N6X-B

CAD

$3059.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Surge Protector 3 Phase Delta System, 100kA Surge Current, 600V, 10 AWG Wire

Documentation & Downloads

Specifications

Key Specifications

Height: 10.569 in | 268.4526 mm

Weight: 0.962450665133076 lbs

Length5.245 in | 133.223 mm

Width3.296 in | 83.7184 mm

Dimensions

Height BX (IN): 4

Length (mm): 133.223

Width BX (IN): 6

Height (mm)268.4526

Weight BX (LB)4.35

Width (mm)83.7184

Testing Standards

CSA Standard: C22.2 No. 269.1-14

UL Control Number: E315947

UL File Number: E484255

Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

UL / CULUS SpecificationUL/cUL 1449 Listed

Additional Class Attributes

AC Frequency: 50/60 Hz

Type Of Indicators: Relay Contacts, Audible Alarm, Blue indicator LED

Mounting MethodMountable or flush mountable with flush mount kit

Warranty10 Year

Surge Specifications

Dry relaying contact: Yes

Nominal Discharge Current: 20 kA

Phase: 3

Surge Current Rating: 100 kA

UL Voltage Protection Rating L-G: 3000

Electrical Noise FilterNo

OutletNone

Short Circuit Current Rating (SCCR)200 kA

SystemDelta

UL Voltage Protection Rating L-L3000

Material and Finish

Material: Polycarbonate

Conductor Ranges

Conduit Hub Size: 3/4

Lead Wire Size10 AWG

Additional Technical Specifications

Nominal Voltage: 600 V

General

Bag Quantity: 1

NEMA Code: 0-000-1

UPC Code: 78366901124

Carton Quantity DescriptionSTD PACK QTY 1

ULCSA Type1

Environment and Temperature

Environmental Conditions: Enclosure rated to NEMA/UL Type 1/2/3/3R/3X/4/4X

Operating Temperature-40°C to 65°C
