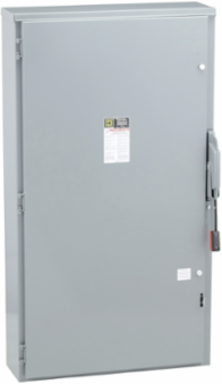

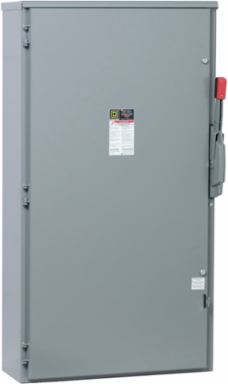

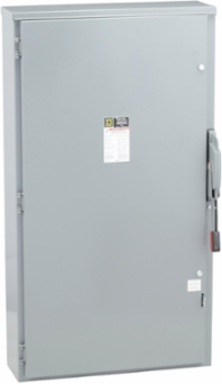

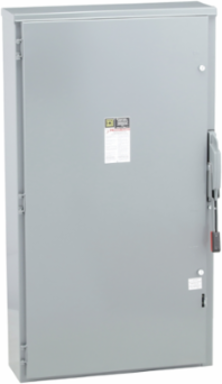

Square D H225NR Heavy Duty Safety Switch 400A 2 Pole 1 Neutral 125hp NEMA 3R
- MPN: H225NR
- UPC: 785901450405
- PPN: SCH-H225NR
CAD
$4878.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 400A with voltage of 240VAC and 250VDC. This switch is rated at 50hp for 3 phase with standard fuses. For time delay fuses, this switch is rated at 125hp at 3 phase. For 250VDC, it also is rated at 50hp This unit includes a factory installed neutral. It is UL listed with the file E2875.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth10.13 in
Complementary Attributes
- Ue Rated Operational Voltage
- 250 V DC, 240 V AC
Line Rated Current400 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R or J
- Short Circuit Current
- 10 kA for H or K, 200 kA for R or J
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 193 kg CO2 eq., 192.73633384010333
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 405 kg CO2 eq., 405.15953802458023
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- fusible disconnect
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 164 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 815.7312
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

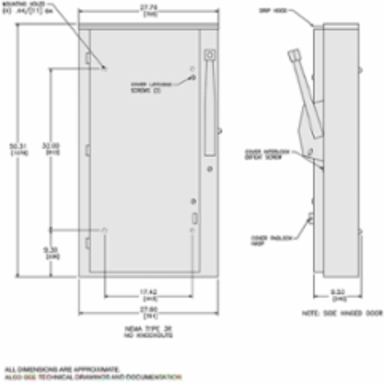

- Height Nominal
- 50.31 in
- Certificate Agency
- UL listed file E2875
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power Hp50 hp at 240 V delta AC 50-60 Hz for 3 phase motors, 125 hp at 240 V delta AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
Carbon Footprint Of The Distribution Phase A4200.94224539111337, 201 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1919004712198152, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6365 kg CO2 eq., 364.68045510195384
Local Publishable Date2025-12-16
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 1/0...750 kcmil copper or aluminium
Device Compositionneutral (factory installed)
Electrical Connectionlugs
Halogen Free StatusHalogen free plastic parts product
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv6.2.4
Tightening Torque550-550 lbf.in (AWG 1/0...750 kcmil)
Wiring Configuration3-wire
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %90
Width Nominal27.88 in
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint1163.7104728289705
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R galvannealed steel
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2503029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
