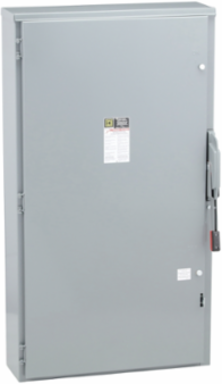

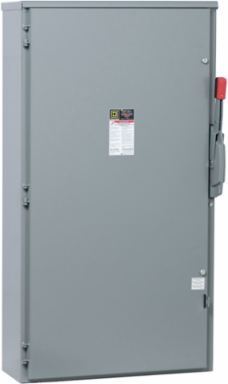

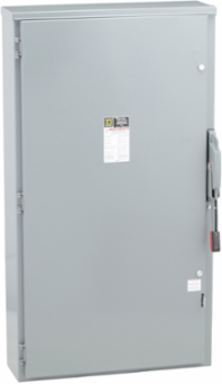

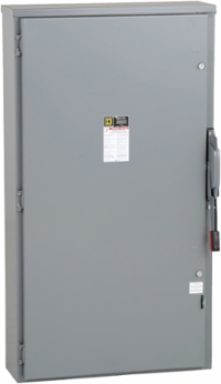

Square D H226NR Heavy Duty Fusible Safety Switch 600A 2 Pole 3-Wire NEMA 3R
Square D H226NR Heavy Duty Fusible Safety Switch 600A 2 Pole 3-Wire NEMA 3R
- MPN: H226NR
- UPC: 785901450726
- PPN: SCH-H226NR
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 600A with voltage of 240VAC and 250VDC. This switch is rated at 75hp for 3 phase with standard fuses. For time delay fuses, this switch is rated at 200hp at 3 phase. For 250VDC, it also is rated at 50hp This unit includes a factory installed neutral. It is UL listed with the file E2875.
Features
- Heavy duty fusible 600A, 240VAC/250VDC safety switch
- Type 3R enclosure for rainproof applications
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Factory installed neutral
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed
- Seismically Qualified to the 2010 ASCE 7, 2012 IBC, 2013 CBC.
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R or J
- Short Circuit Current
- 10 kA for H or K, 200 kA for R or J
- Carbon Footprint Of The Distribution Phase A4
- 195.20096605341644, 195 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.18641753154148036, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 821 kg CO2 eq., 820.5310239793962
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Device Application
- heavy application
- Disconnector Device Type
- fusible disconnect
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 77.111 kg
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Tightening Torque
- 375-375 lbf.in (AWG 3/0...500 kcmil)
- Wiring Configuration
- 3-wire
- Stocking Flag
- N
- Pep Code
- ENVPEP2503029EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power HP75 hp at 240 V AC 50-60 Hz for 3 phase motors, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
Ue Rated Operational Voltage2250 V DC, 240 V AC
Carbon Footprint Of The End Of Life Phase C1 To C4187 kg CO2 eq., 187.22951207175961
Carbon Footprint Of The Manufacturing Phase A1 To A3394 kg CO2 eq., 393.5834053920231
Ue Rated Operational Voltage5250 V DC, 240 V AC
Local Publishable Date2025-11-18
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 3/0...500 kcmil copper or aluminium
Device Compositionneutral (factory installed)
Electrical Connectionlugs
Halogen Free StatusHalogen free plastic parts product
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 597 kg CO2 eq.
Medium DescSafety switch, heavy duty, fusible, 600A, 3 wires, 2 pole, 1 neutral, 200hp, 240VAC/250VDC, NEMA 3R
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Nema Degree Of Protection
- NEMA 3R galvannealed steel
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1596.731325028137
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 10.13 in
