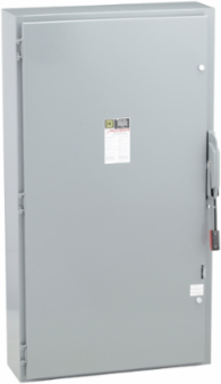

Square D H325N Heavy Duty Safety Switch, 400A, 3-Pole, Fusible Disconnect, NEMA 1
Square D H325N Heavy Duty Safety Switch, 400A, 3-Pole, Fusible Disconnect, NEMA 1
- MPN: H325N
- UPC: 785901450368
- PPN: SCH-H325N
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2933.15/ EA
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
Features
- Heavy duty fusible 400A, 240VAC/250VDC safety switch
- Type 1 enclosure for indoor general purpose applications
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Factory installed neutral
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R or J
- Short Circuit Current
- 10 kA for H or K, 200 kA for R or J
- Carbon Footprint Of The Distribution Phase A4
- 192.90242917571416, 193 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.18422242165262323, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 547 kg CO2 eq., 547.0206826529308
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- AWG Gauge
- AWG 1/0...750 kcmil copper or aluminium
- Device Composition
- neutral (factory installed)
- Electrical Connection
- lugs
- Halogen Free Status
- Halogen free plastic parts product
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 314 kg CO2 eq.
- Medium Desc
- Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 1
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power HP50 hp at 240 V AC 50-60 Hz for 3 phase motors, 125 hp at 240 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
Ue Rated Operational Voltage2250 V DC, 240 V AC
Carbon Footprint Of The End Of Life Phase C1 To C4185 kg CO2 eq., 185.02484092288128
Carbon Footprint Of The Manufacturing Phase A1 To A3389 kg CO2 eq., 388.94886904706647
Ue Rated Operational Voltage5250 V DC, 240 V AC
Local Publishable Date2025-12-16
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Device Applicationheavy application
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Package Weight Lbs76.203 kg
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Tightening Torque550-550 lbf.in (AWG 1/0...750 kcmil)
Wiring Configuration4-wire (3PH + G)
Stocking FlagN
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1314.0810442202453
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 10.13 in
