Heavy Duty Fusible Safety Switch, 30A 600V, 3 Poles, NEMA 12K
Square D

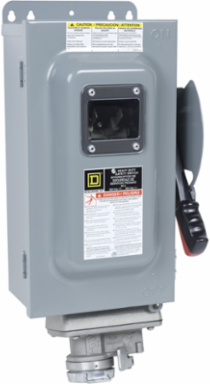

Square D H361AWCVW Heavy Duty Fusible Safety Switch, 30A 600V, 3 Poles, NEMA 12K

  • MPN: H361AWCVW
  • UPC: 785901824244
  • PPN: SCH-H361AWCVW

CAD

$3174.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This heavy-duty fusible safety switch from Schneider Electric is designed for reliable performance and superior safety in automation and control applications. With a rating of 30A and capable of handling voltages up to 600V, it features three poles and is housed in a robust NEMA 12K enclosure, ensuring protection against dust and non-corrosive environments. Engineered for enduring performance, this safety switch not only enhances operational safety but also provides the necessary disconnect means required for electrical circuits, making it an essential component for industrial settings.

Documentation & Downloads

Specifications

Additional

Current Rating
30 A
Number of Poles
3
Short-circuit Current Rating
10 kA H or K, 200 kA R or J
Disconnect Type
Fusible disconnect
Electrical Connection
Receptacle
Wire Size
AWG 12 to AWG 2 aluminum, AWG 14 to AWG 2 copper
Dimensions
Height 16.5 in, Width 10.5 in, Depth 7 in
Enclosure Rating
NEMA 12K, NEMA 3R
RoHS Compliance
Compliant with Exemptions
Mercury Free
Yes
Voltage Rating600 V AC, 250 V DC
Maximum Horsepower20 Hp at 600 V AC, 15 Hp at 480 V AC, 7.5 Hp at 600 V AC, 5 Hp at 480 V AC, 5 Hp at 250 V DC
Fuse TypeH or K, R or J
Mounting TypeSurface
Wire Configuration4-wire without neutral
Tightening Torque45 lbf.in (AWG 6), 40 lbf.in (AWG 8), 35 lbf.in (AWG 14 to AWG 10)
Net Weight14 kg (30.86 lb)
CertificationsUL Listed
PVC FreeYes
Country of OriginUS
