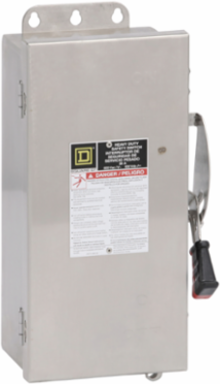

Square D HU663DS Heavy Duty Safety Switch 600V 100A 6-Pole NEMA 4/4X/5 16.85 Inch x 20.82 Inch x 6.97 Inch
- MPN: HU663DS
- UPC: 785901078074
- PPN: SCH-HU663DS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust applications, this heavy-duty safety switch from Schneider Electric ensures reliable performance and safety in demanding environments. With a rated operational voltage of 600V AC and a current capacity of 100A, it features a durable NEMA 4/4X/5 stainless steel enclosure, making it suitable for both indoor and outdoor installations. The switch is engineered for three-phase networks and supports a 6-wire configuration, providing versatile connectivity options. Its compact dimensions of 16.85 inches in width, 20.82 inches in height, and 6.97 inches in depth allow for easy surface mounting, while its green premium status highlights its environmentally friendly design. Certified by UL, this safety switch is built to meet stringent safety standards, making it a dependable choice for industrial and commercial applications.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4/4X/5 stainless steel 304
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 6
Disconnector Device Typenon-fusible disconnect
[In] Rated Current100 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC
Complementary
- Height
- 20.82 in
- Tightening Torque
- 50-50 lbf.in AWG 1...AWG 3/0) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 35-35 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 12...AWG 1/0 aluminum || AWG 14...AWG 1/0 copper
- Width
- 16.85 in
- Net Weight
- 14.52 kg
Device Mountingsurface
Electrical Connectionlugs
Wiring Configuration6-wire
Depth6.97 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
