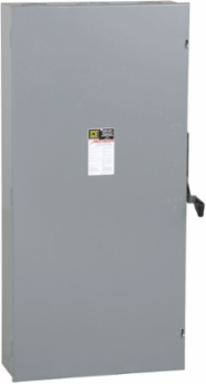

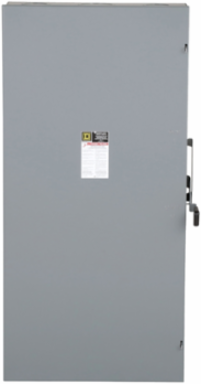

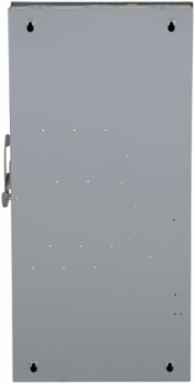

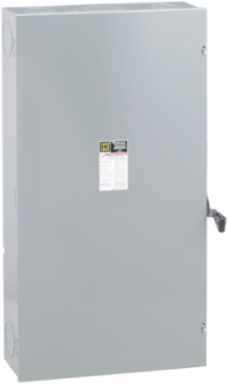

Square D D226N General Duty Safety Switch 2 Pole 600A 240VAC Type 1 with Neutral
Square D D226N General Duty Safety Switch 2 Pole 600A 240VAC Type 1 with Neutral
- MPN: D226N
- UPC: 785901460848
- PPN: SCH-D226N
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2215.06/ EA
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 600A for 240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts H, K, J or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Features
- Designed for residential and commercial applications
- Fusible switches provide over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- Quick make, quick break operating mechanism
- UL listed
- Suitable for use as service entrance equipment
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- Seismically Qualified to the 2010 ASCE 7, 2012 IBC, 2013 CBC.
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 138.93744111529824, 139 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.13268568970256062, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 821 kg CO2 eq., 820.5310239793962
- Local Publishable Date
- 2025-11-18
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- AWG Gauge
- AWG 4...500 kcmil aluminium/copper
- Device Composition
- neutral (factory installed)
- Electrical Connection
- lugs
- Fuse Type
- H, K, J or R
- Package Weight Lbs
- 54.885 kg
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- general duty
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 373 kg CO2 eq.
- Ue Rated Operational Voltage2
- 240 V AC
- Stocking Flag
- Y
- Pep Code
- ENVPEP2503029EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Ue Rated Operational Voltage5
- 240 V AC
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C4133 kg CO2 eq., 133.26362996276183
Carbon Footprint Of The Manufacturing Phase A1 To A3280 kg CO2 eq., 280.1393472389308
Local Data StatusPublishable
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationcommercial
Disconnector Device Typefusible disconnect switch
Energy Efficiency OptimizedFalse
Halogen Free StatusHalogen free plastic parts product
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Short Circuit Current100 kA maximum depending on fuse H, K, J or R
Tightening Torque450-450 lbf.in (AWG 4...500 kcmil)
Wiring Configuration3-wire
Medium DescSafety switch, general duty, fusible, 2 pole, 3 wire, 240VAC, 600A, Type 1, with neutral
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1373.0041279860895
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 8.88 in
