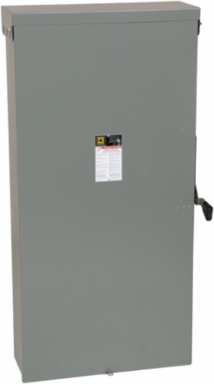

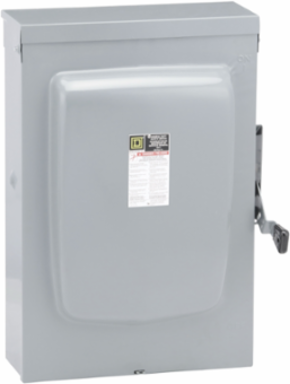

Square D D226NR General Duty Fusible Safety Switch, 2 Pole, 3 Wire, 240VAC, 600A, NEMA 3R
- MPN: D226NR
- UPC: 785901460855
- PPN: SCH-D226NR
CAD
$2943.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

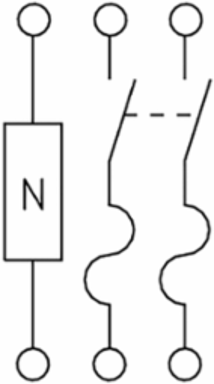

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 600A for 240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts H, K, J or R fuse types. The enclosure is surface mounted and is a Type 3R. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada

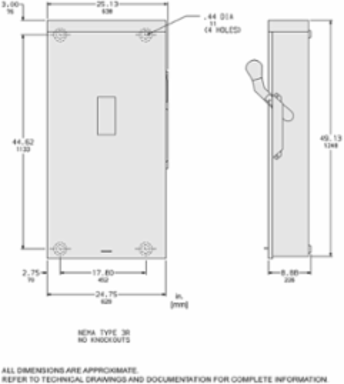

Depth8.88 in
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 126.3056140010532, 126 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.12062225540146235, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 821 kg CO2 eq., 820.5310239793962
- Local Publishable Date
- 2025-12-16
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 4...500 kcmil aluminium/copper
- Device Composition
- neutral (factory installed)
- Electrical Connection
- lugs
- Fuse Type
- H, K, J or R
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v6.2.4
- Tightening Torque
- 450-450 lbf.in (AWG 4...500 kcmil)
- Wiring Configuration
- 3-wire
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 90
- Width Nominal
- 25.13 in
- [Ue] Rated Operational Voltage
- 240 V AC
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 49.895 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]121 kg CO2 eq., 121.14765085163525
Carbon Footprint Of The Manufacturing Phase [A1 To A3]255 kg CO2 eq., 254.66981380133825
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationcommercial
Disconnector Device Typefusible disconnect switch
Energy Efficiency OptimizedFalse
Number Of Poles2
Product Or Component TypeSingle Throw Safety Switch
Series Namegeneral duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 323 kg CO2 eq.
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal49.13 in
Certificate AgencyUL listed file E2875
Short-circuit Current100 kA maximum depending on fuse H, K, J or R
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint1322.7747248888245
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
