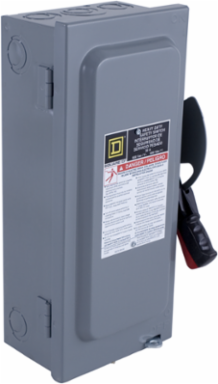

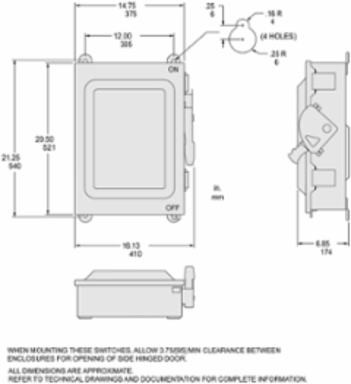

Square D H463 Heavy Duty Fusible Disconnect Switch 600V 100A 4P NEMA 1 14 kg
- MPN: H463
- UPC: 785901482499
- PPN: SCH-H463
CAD
$2369.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Engineered for robust performance, the heavy-duty fusible disconnect switch from Schneider Electric is designed to handle demanding applications with ease. With a rated operational voltage of 600V AC/DC and a current rating of 100A, this four-pole switch is ideal for environments requiring reliable and efficient power management. The switch features a NEMA 1 enclosure, making it suitable for indoor use, while its durable construction ensures longevity and safety, meeting UL certification standards. Weighing 14 kg and designed for surface mounting, it accommodates various wiring configurations and is compliant with environmental regulations, making it a sustainable choice for modern electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth6.85 in
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- AWG 12...AWG 1/0 aluminium, AWG 14...AWG 1/0 copper
- Motor Power Hp
- 30 hp at 600 V DC, 25 hp at 480 V AC 50-60 Hz for 2 phases motors, 60 hp at 480 V AC 50-60 Hz for 2 phases motors, 30 hp at 600 V AC 50-60 Hz for 2 phases motors, 75 hp at 600 V AC 50-60 Hz for 2 phases motors, 20 hp at 250 V DC
- Short-circuit Current
- 10 kA for H or K, 200 kA for R or J
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 40 kg CO2 eq., 39.897199408238656
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 95 kg CO2 eq., 94.6176751128674
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- none
- Electrical Connection
- lugs
- Number Of Poles
- 4
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Wiring Configuration
- 4-wire
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 79.4824
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 20.5 in
- Certificate Agency
- UL listed file E2875
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fuse TypeH or K, R or J
Tightening Torque50-50 lbf.in (AWG 1...AWG 3/0), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Carbon Footprint Of The Distribution Phase [A4]5.160574956591046, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.8144223995949946, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]40 kg CO2 eq., 40.46399702689221
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationheavy application
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint182 kg CO2 eq.
Pep CodeENVPEP2305006EN
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %89
Width Nominal16.13 in
[Ue] Rated Operational Voltage600 V AC/DC
Package Weight(Lbs)17.345 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 181.9538689041843
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 1 steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
