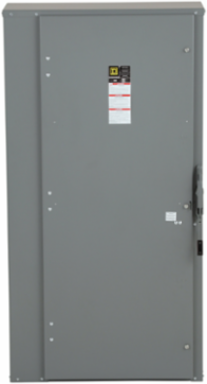

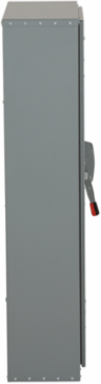

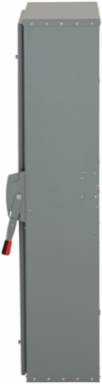

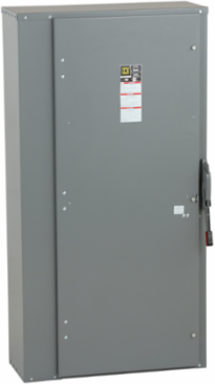

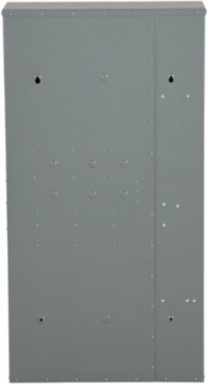

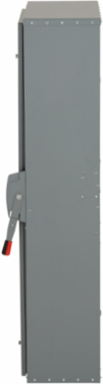

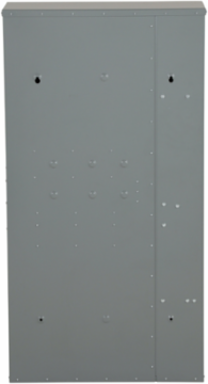

Square D H367 Heavy Duty Fusible Safety Switch 600V 800A 3 Phase NEMA 1
Square D H367 Heavy Duty Fusible Safety Switch 600V 800A 3 Phase NEMA 1
- MPN: H367
- UPC: 785901195399
- PPN: SCH-H367
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase, 50 HP at 600 VAC three phase and 30 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 12 to 3 AWG aluminum wire and 14 to 3 AWG copper wire. This device has enclosure rating of NEMA 4/4X/5 and it is made of stainless steel. It has a height of 16.87 in, width of 10.81 in and has a depth of 6.97 in. It is UL listed with the file E2875.
Specifications
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1405016EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Complementary

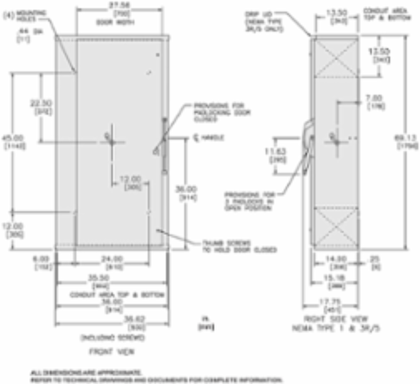

- Height
- 69.13 in
- Tightening Torque
- 375-375 lbf.in 85.01-380 mm² AWG 3/0...750 kcmil)
- Electrical Connection
- lugs
- Width
- 36.62 in
- Depth
- 17.75 in
- Short-Circuit Current
- 200 kA maximum for L
Device Mountingsurface
Fuse TypeL
Awg GaugeAWG 3/0...750 kcmil copper or aluminum

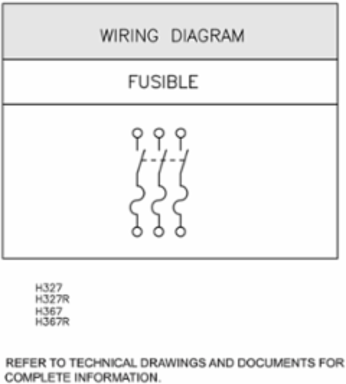

Wiring Configuration3-wire
Net Weight167.8 kg
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 1 steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typefusible disconnect
[In] Rated Current800 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
