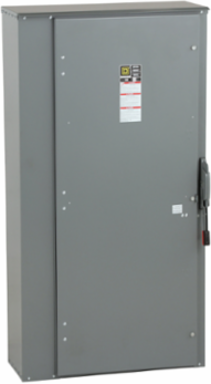

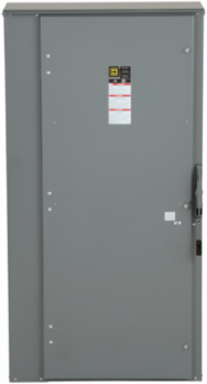

Square D H367R Heavy Duty Fusible Safety Switch, 600V, 800A, 3 Pole, NEMA 3R
- MPN: H367R
- UPC: 785901823070
- PPN: SCH-H367R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 250 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase, 50 HP at 600 VAC three phase and 10 HP at 250 VDC. This switch has a 4 wire configuration and is rated for 12 to 2 AWG aluminum wire and 14 to 2 AWG copper wire. This device has enclosure rating of NEMA 1 and it is made of steel. It has a height of 16.75 in, width of 10.5 in and has a depth of 6.81 in. This switch uses a crouse hinds receptacle. It is UL listed with the file E2875.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

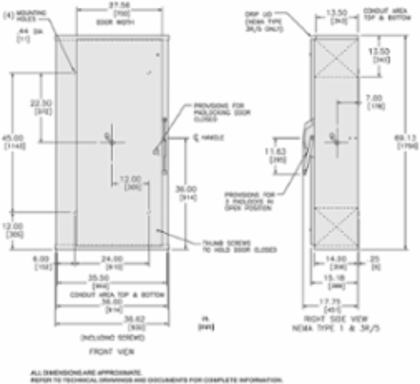

- Width
- 36.62 in
Height69.13 in
Complementary Attributes
- Line Rated Current
- 800 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 500 hp at 600 V AC 50-60 Hz for 3 phase motors200 hp at 480 V AC 50-60 Hz for 3 phase motors, 500 hp at 480 V AC 50-60 Hz for 3 phase motors250 hp at 600 V AC 50-60 Hz for 3 phase motors50 hp at 600 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.4281391821868275
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.781701981044254
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 3/0 AWG...750 kcmil copper or aluminium
- Device Composition
- none
- Electrical Connection
- lugs
- Fuse Type
- L
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v6.2.4
- Tightening Torque
- 375-375 lbf.in 85.01-380 mm² (3/0 AWG...750 kcmil)

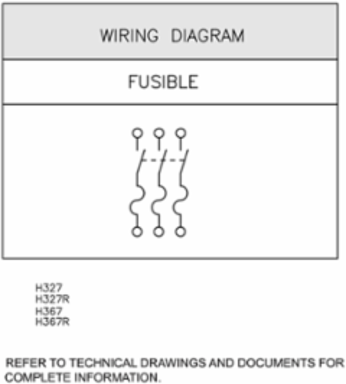

- Wiring Configuration
- 4-wire (3PH + N)
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 93
- Height Useful
- 69.13 in
- Width Real
- 36.62 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 161.933 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.35774196144074777, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.03193604451537081, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 093 kg CO2 eq., 1092.6315181856207
Local Publishable Date2025-11-18
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1917
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationheavy application
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 095 kg CO2 eq.
Pep CodeENVPEP2503030EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal69.13 in
Width Nominal36.62 in
Certificate AgencyUL listed file E2875
Short-circuit Current200 kA maximum for L
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503030EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1095.231037354808
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R galvannealed steel
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503030EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
