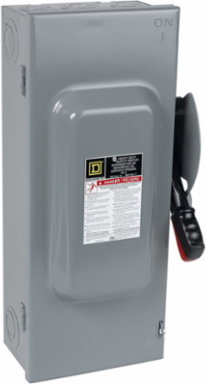

Square D HU462 Heavy Duty Safety Switch 4P 600V 60A NEMA 1, 16.13 Inch Width, 20.5 Inch Height
- MPN: HU462
- UPC: 785901505914
- PPN: SCH-HU462
CAD
$724.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance, the Heavy Duty Safety Switch from Schneider Electric is designed to meet the demands of heavy applications with its reliable single throw operation. This 4-pole switch, rated for 60A and capable of handling voltages up to 600V AC/DC, ensures safety and efficiency in electrical systems. With a compact design measuring 16.13 inches in width and 20.5 inches in height, it is constructed from NEMA 1 steel, making it suitable for indoor use while providing essential protection against dust and contact. This switch not only adheres to stringent UL certification standards but also boasts a sustainable profile, being a Green Premium product that complies with various environmental regulations.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 1 steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 4
Disconnector Device Typenon-fusible disconnect
[In] Rated Current60 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary

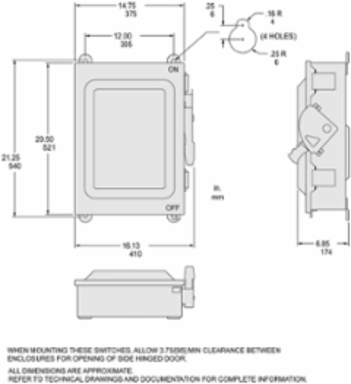

- Height
- 20.5 in
- Tightening Torque
- 50-50 lbf.in AWG 3) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 50-50 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 14...AWG 3 copper || AWG 12...AWG 3 aluminum
- Width
- 16.13 in
- Net Weight
- 13 kg
Device Mountingsurface
Electrical Connectionlugs
Wiring Configuration4-wire
Depth6.85 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
