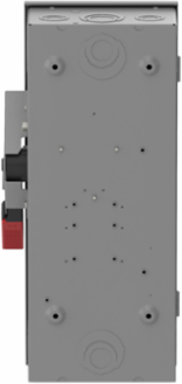

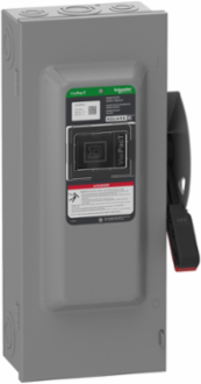

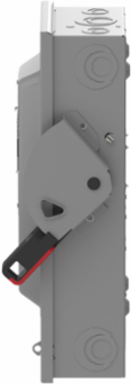

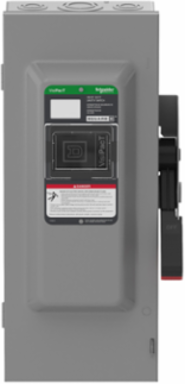

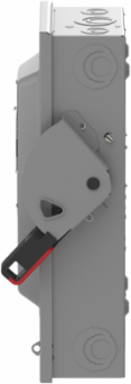

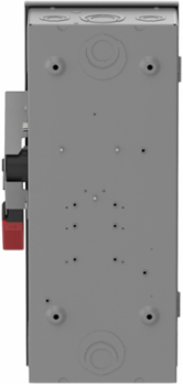

Square D VHU363GL Heavy Duty Safety Switch, 100A, 600V, 3-Pole, NEMA 1, 21.84 Inch Height
- MPN: VHU363GL
- PPN: SCH-VHU363GL
CAD
$589.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This heavy-duty safety switch from Schneider Electric is designed for efficient power distribution and enhanced safety in industrial applications. With a robust capacity of 100A and a voltage rating of up to 600V, it ensures reliable operation under demanding conditions. Featuring a 3-pole design and housed in a NEMA 1 enclosure, this switch is built to protect electrical circuits from overloads while providing easy access for disconnecting power. Measuring 21.84 inches in height, it offers a compact solution for effective electrical management in various settings.
Features
- The Schneider Electric (Square D) VHU363GL is a 100-Amp, 3-pole, non-fusible safety switch. It is a step up in power from the 60A models, designed for larger 3-phase industrial loads. Built to the "Heavy Duty" standard, it is engineered to handle frequent switching cycles under high load in demanding Canadian environments like mines, mills, and large-scale manufacturing.
- As a non-fusible disconnect, this switch does not provide overcurrent protection itself; instead, it provides a safe, mechanical "open" point in the circuit. It is used to satisfy CEC (Canadian Electrical Code) requirements for a local disconnecting means within sight of the motor or equipment, allowing maintenance staff to work safely while the upstream breaker handles the circuit protection.
- The unit is housed in a rugged NEMA Type 3R galvanized steel enclosure with a grey polyester powder coat finish. It is designed to shed rain and resist ice formation, making it the standard choice for Canadian outdoor installations, such as large commercial rooftop HVAC units, exterior chillers, or pumping stations.
- The "GL" suffix is a major feature for installers. It means the switch comes with factory-installed ground and neutral lugs. In many Canadian jurisdictions, having these pre-installed ensures a cleaner, faster inspection process and saves the contractor the cost and hassle of sourcing separate lug kits for bonding and grounding.
- This 100A switch is rated for significant motor loads. At 600V AC, it can control motors up to 75 HP. Its "Quick-Make, Quick-Break" mechanism ensures that the blades snap into position faster than the human hand can move the handle, which suppresses arcing and significantly extends the service life of the internal contacts.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 100 A
- Number of Poles
- 3
- Disconnector Device Type
- Non-fusible disconnect
- Enclosure Rating
- NEMA 1 steel
- Electrical Connection
- Lugs
- Wire Size
- AWG 12...AWG 1/0 aluminum, AWG 14...AWG 1/0 copper
- Dimensions

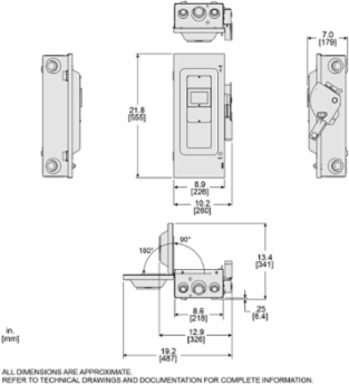

- 21.84 in H x 8.91 in W x 7.04 in D
- Product Type
- Single Throw Safety Switch
- RoHS Compliance
- Compliant
- Product Certifications
- UL listed file E2875
- Series Name
- Heavy duty
Voltage600 V AC/DC
Motor Power20 Hp at 240 V AC 1 phase, 40 Hp at 240 V AC 3 phase, 40 Hp at 480 V AC 1 phase, 75 Hp at 480 V AC 3 phase, 40 Hp at 600 V AC 1 phase, 100 Hp at 600 V AC 3 phase, 20 Hp at 250 V DC, 50 Hp at 600 V DC
Duty RatingHeavy duty
Mounting TypeSurface
Wiring Configuration3-wire
Tightening Torque50 lbf.in AWG 1...AWG 3/0, 45 lbf.in AWG 4...AWG 6, 40 lbf.in AWG 8, 35 lbf.in AWG 10...AWG 14
Net Weight8 kg (17.64 lb)
REACH ComplianceFree of SVHC above threshold
Environmental DisclosureENVPEP2303036EN
Country of OriginUS
Device ApplicationHeavy application
