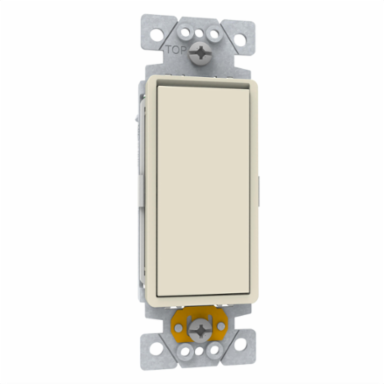

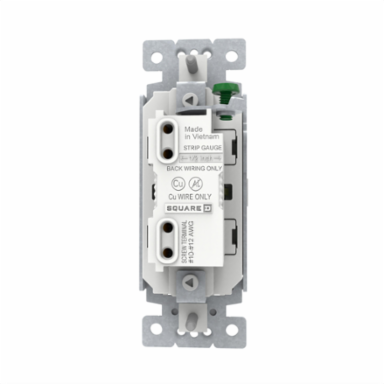

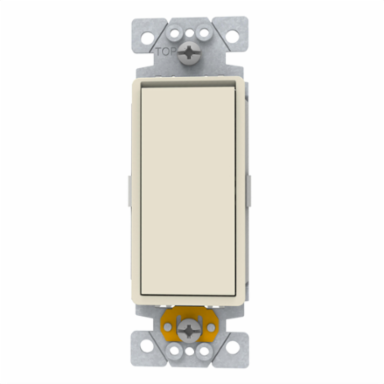

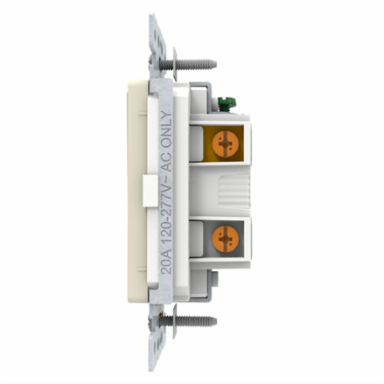

Schneider Electric SQR14201LA Switch, X Series, 20A, single pole, 1 way, light almond

MPN: SQR14201LA
PPN: SCH-SQR14201LA
UNSPSC: 39121406

$13.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric X Series 20A Single-Pole Switch with side wire clamps. The rated operational voltage of this switch is 120V and 277V. Its matching mounting box can be recessed into the surface of the wall for flush mounting. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 20A. The connection is screw terminals.

Features

Self grounded with brass ground contact to ensure device’s ground retention to metal boxes
Silver alloy switch actuator contacts assure long lasting reliable performance
Combo screw heads accept slotted, Phillips, and Robertson Square tools
Zinc plated steel mounting strap for rust resistance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Vietnam
Weight	87.9 g

Actuator	rocker

Complementary Attributes

Ie Rated Operational Current Ac	20 A

Ue Rated Operational Voltage	120 V

Important Information Attributes

X Main Color Tint	light almond
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.05077143511831171
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.26583373435240853
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Aesthetic Name	X Series
Earth Circuit	self earthing
Market Segment	commercial
Mounting Mode	by screws
Network Type	AC
Number Of Modules	1
Number Of Rocker	1
Product Or Component Type	switch
Returnability	Yes
Surface Finish	Matte
Switch Function	1-way
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Main Color Tint	light almond
Database Version	2026-04
Certificate Agency	cULus
Customs Code	8536509065
Functional Unit Description	Establish, support and interrupt the rated current I and rated voltage U for a wall-mounted installation, and for the reference service life of the product of 20 years.N/A
Functional Unit Unit	unit

Carbon Footprint Of The Distribution Phase A4	0.056652271127350495, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.05625567341076645, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.08261325771771208
Local Publishable Date	2026-08-19
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Actuator	rocker
Device Application	control
Energy Efficiency Optimized	False
Material	plastic: strap
Network Frequency	60 Hz
Number Of Gangs	1 gang
Number Of Poles	1
Product Availability	Stock - Normally stocked in distribution facility
Range	Square D X Series
Software Version	v6.3.4
Sustainable Packaging	No
Targeted Channel	distributor
Color Tint	light almond
Connections Terminals	phase and neutral screw terminal 12 AWG...10 AWG) copper
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	24
Functional Unit Quantity	1
Recyclability Potential In %	33

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2606004EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Verification Date	2026-07-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.5121263717265493
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2606004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
