Hubbell Wiring Device-Kellems

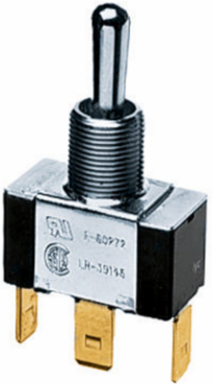

Hubbell Wiring Device-Kellems HBL123 Commercial Grade Bat Handle Switch, SPDT, 10A 250V, 2.15 Inch x 0.56 Inch x 1.12 Inch

Commercial Grade Bat Handle Switch, SPDT, 10A 250V, 2.15 Inch x 0.56 Inch x 1.12 Inch
  • MPN: HBL123
  • UPC: 783585016764
  • PPN: HBL-HBL123
  • UNSPSC: 39122239

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$19.05/ EA

Description

Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw Center Off, 10A 250V/10A 125V,

Features

  • Nickel Plated for Corrosion Resistance

Specifications

Specifications

Country of Origin
China
Dimensions
2.15 in x 0.56 in x 1.12 in
Horsepower - Maximum
0.75
Length
2.15 in
Performance
Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
Number of Poles
Single Pole
Size
2.15 in x 0.56 in x 1.12 in
Type
General Purpose
Weight
0.05 lb.
Engineering Drawing 1 Display Text
HBL123 AutoCAD Drawing
Connectivity
Screw Terminals
Style
Screw Terminal
Description - Invoice
PANEL SW, SPDT, SCREW TERM, 3 POS
Harmonization Code
8536509040
MSDS Flag
No
Sub Class Code
A16A240
Base Unit of Measure
EA
Carton - Gross Weight per Pack
0.650 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Each - Pack Description
Each
Current / Amperage Rating10/20 A
Height1.12 in
Industry Standard(s)UL Listed
Mounting MethodPanel Mount
Amperage Rating10/20 A
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating250/125 VAC
Width0.56 in
ActionSPDT
Number Of PolesSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number123
SeriesSingle Pole/Double Throw
BOX SIZE3.100x4.800x2.800 (in)
Carton - Number of Sub Packs100
Carton - SCC-14 Next Lower Level Sub Pack783585016764
Case Weight6.600 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
No
