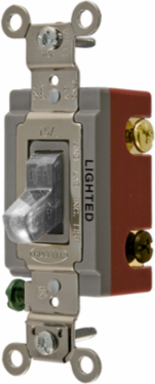

Hubbell Wiring Device-Kellems HBL1223ILC Industrial Grade Illuminated Toggle Switch, 20A 120-277V AC, 4.06 Inch Length
- MPN: HBL1223ILC
- UPC: 783585431864
- PPN: HBL-HBL1223ILC
- UNSPSC: 39122211
CAD
$177.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Illuminated Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Clear Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
- Illuminated Toggle
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.31 in x 1.86 in
- Indicator
- Light On with Load Off
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 20 A
- Color
- Clear
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Special Features
- Illuminated Toggle
- Type
- Toggle
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.31 in
- General Literature Asset 1 Display Text
- Healthcare Product Solutions
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Three Way
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 1223ILC
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.2 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 11.850 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20 A
Height1.86 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
ActionSPDT
ApplicationBack and Side Wired
Number of PolesSingle Pole
Size4.06 in x 1.31 in x 1.86 in
StandardUL Listed
Voltage Rating120-277 VAC
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL1223ILC AutoCAD Drawing
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - Invoice3 WAY TOG, IND GRD, 20A 120/277V, IL,CLR
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.700x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585431864
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet Height50.000 in
Pallet Weight893.200 lb.
NAICS Code3359315101
