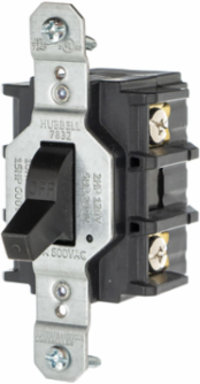

Hubbell Wiring Device-Kellems HBL7832S Circuit-Lock Manual Short Toggle Disconnect Switch 2-Pole 30A 600V AC
- MPN: HBL7832S
- UPC: 783585680538
- PPN: HBL-HBL7832S
- UNSPSC: 39121521
CAD
$101.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit-Lock® Manual Short Toggle Controller/Motor Disconnect Switch, 2-pole 30A 600V AC, Back and Side Wired
Features
- Thermoset body provides high resistance to electrical arc tracking
- Strong ON/OFF action with quick-make, slow break operation
- Optional Side Finger Guards for close wall applications and finger safe environments
- Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
- Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
- Short Toggle
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 30 A |
| Horsepower - Maximum | 15 |
| Number of Poles | 2 Pole |
| Type | Back & Side Wire |
| Voltage Rating Description | 600 VAC |
| Engineering Drawing 1 Display Text | HBL7832S AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Amperage Rating | 30 A |
| Display Size | Standard Sized Product |
| Load Capacity | Inductive |
| Operating Cycles | 10,000 Cycles Minimum |
| Wattage | 18000 W |
| Description - Invoice | 30A 600V 2P DISC SW SHORTY |
| Harmonization Code | 8536509040 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Series | Short Toggle |
| BOX SIZE | 7.500x14.500x8.300 (in) |
| Carton - Number of Sub Packs | 30 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585680538 |
| Case - Total Units | 30 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585680537 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Color | Black |
|---|---|
| Width | 4.250 in |
| Current Rating | 30 |
| Special Features | Short Toggle |
| Voltage Rating | 600 VAC |
| Weight | 0.45 lb. |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Connectivity | Back and Side Wired |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Poles | 2 Pole |
| Phase | Single Phase |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A16A240 |
| Material | Stainless Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.950 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 11.950 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 45.000 in |
| Pallet Weight | 1075.500 lb. |
| NAICS Code | 3353146111 |
