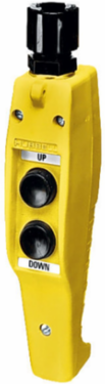

Hubbell Wiring Device-Kellems CPB21 Industrial Pendant Control Switch, 2 Button, Single Speed, NEMA 4X, 240VAC

Industrial Pendant Control Switch, 2 Button, Single Speed, NEMA 4X, 240VAC
Industrial Pendant Control Switch, 2 Button, Single Speed, NEMA 4X, 240VAC
  • MPN: CPB21
  • UPC: 783585106854
  • PPN: HBL-CPB21
  • UNSPSC: 39121561

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$308.29/ EA

Description

Switches and Lighting Controls, Industrial Grade, Pendant Controls, Two Button Compact Version, Single Speed Normally Open, Pilot Duty, 240VAC, Terminal Screws, Yellow, with Interlock.

Features

  • Single-speed with mechanical interlock between pushbuttons.
  • Standard Product

Specifications

Specifications

General Literature Asset 1 Display Text
Pulp & Paper Solutions
Country of Origin
United States
Height
2.38 in
Ingress Protection
IP55
Performance
Environmental -  Operating Temperatures - Max Continuous- 75 ° C, Minimum -40° w/o Impact
Amperage Rating
120V AC- 6A, 240V AC 35% PF- 3A, 125V DC- 1.1A, Inductive 250V- .55 A
Contact Rating
Pilot Duty Only
Environmental Conditions
Indoor and Outdoor
Phase
Single Phase
Special Features
Standard Product
Type
Single Speed
Width
1.06 in
Display Size
Compact
Nema Rating
NEMA 4X
Class Code
A16
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A16A240
Series
Compact
BOX SIZE
9.300x13.600x11.700 (in)
Carton - Number of Sub Packs
25
Carton - SCC-14 Next Lower Level Sub Pack
783585106854
Case Weight
8.915 lb.
Lowest Level UOM
Each
Pallet Height
46.500 in
Pallet Weight
1149.000 lb.
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Dimensions9.13 in x 1.06 in x 2.38 in
Industry Standard(s)UL Listed
Length9.13 in
ActuatorPush Buttons
Contact ConfigurationMomentary
EnclosureNEMA 4X
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Size9.13 in x 1.06 in x 2.38 in
StandardUL Listed
Weight0.75 lb.
ConnectivityTerminal Screws
Enclosure TypeNEMA 4X
StyleTwo Button
Description - InvoiceCOMPACT PEND, 2 BUTTON 1 SPEED
Harmonization Code8536509901
MSDS FlagNo
Material - Mounting HardwareCable Mounted
Base Unit of MeasureEA
Carton - Gross Weight per Pack18.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585106853
Pallet Length48.000 in
Pallet Width40.000 in

Certifications
