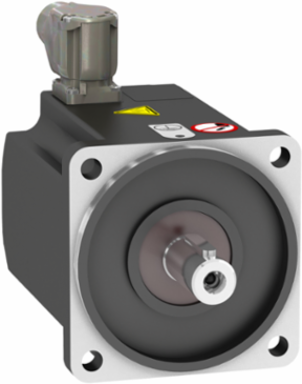

Schneider Electric BMP1002R3NA2A synchronous motor - BMP - 230 VAC - 1.5 kW - IP65 - IEC

MPN: BMP1002R3NA2A
PPN: SCH-BMP1002R3NA2A

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2212.09/ EA

Qty:

Loading add to cart quantity...

Description

synchronous motor - BMP - 230 VAC - 1.5 kW - IP65 - IEC

Specifications

Complementary

Circle Diameter Of The Mounting Holes: 115-115 mm

Number Of Motor Stacks: 2

Number Of Motor Poles: 5

Centring Collar Depth: 3.5 mm

Network Number Of Phases: single phase

Maximum Current Irms: 10.4 A ATV32 1.1 kW 200 V single phase || 12 A ATV32 1.5 kW 200 V single phase || 10.4 A ATV320 1.1 kW 200 V single phase || 12 A ATV320 1.5 kW 200 V single phase

Centring Collar Diameter: 95 mm

Motor Flange Size: 100 mm

Number Of Mounting Holes: 4

Key Width: 6 mm

Mounting Holes Diameter: 9 mm

Maximum Operating Frequency: 300 Hz ATV32 1.1 kW 200 V single phase || 300 Hz ATV32 1.5 kW 200 V single phase || 300 Hz ATV320 1.1 kW 200 V single phase || 300 Hz ATV320 1.5 kW 200 V single phase

Range Compatibility: Altivar 32 || Altivar Machine ATV320

Torque Constant: 0.83 N.m/A 40 °C

Maximum Radial Force Fr990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm

Rotor Inertia6.28 kg.cm²

Maximum Axial Force Fa0.2 x Fr

Shaft Length40 mm

Length160.6 mm

Net Weight4.92 kg

Stator Inductance2.18 mH for q-axis winding 40 °C || 1.89 mH for d-axis winding 40 °C

[Us] Rated Supply Voltage230 V

Shaft Diameter19 mm

Minimum Operating Frequency25 Hz ATV32 1.1 kW 200 V single phase || 25 Hz ATV32 1.5 kW 200 V single phase || 25 Hz ATV320 1.1 kW 200 V single phase || 25 Hz ATV320 1.5 kW 200 V single phase

Type Of Coolingnatural convection

Stator Resistance0.53 Ohm 40 °C

Nominal Operating Frequency250 Hz ATV32 1.1 kW 200 V single phase || 250 Hz ATV32 1.5 kW 200 V single phase || 250 Hz ATV320 1.1 kW 200 V single phase || 250 Hz ATV320 1.5 kW 200 V single phase

Offer Sustainability

Rohs Exemption Information: Yes

Pvc Free: Yes

Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

China Rohs RegulationX

Specifications

Product Compatibility: variable speed drive ATV32 1.1 kW 200 V single phase || variable speed drive ATV32 1.5 kW 200 V single phase || variable speed drive ATV320 1.1 kW 200...240 V single phase || variable speed drive ATV320 1.5 kW 200...240 V single phase

Mounting Support: international standard flange

Product Or Component Type: synchronous motor

Ip Degree Of Protection: IP65 standard || IP67 with IP67 kit

Nominal Speed: 3000 rpm ATV32 1.1 kW 200 V single phase || 3000 rpm ATV32 1.5 kW 200 V single phase || 3000 rpm ATV320 1.1 kW 200 V single phase || 3000 rpm ATV320 1.5 kW 200 V single phase

Nominal Torque: 3.5 N.m ATV32 1.1 kW 200 V single phase || 4.77 N.m ATV32 1.5 kW 200 V single phase || 3.5 N.m ATV320 1.1 kW 200 V single phase || 4.77 N.m ATV320 1.5 kW 200 V single phase

Maximum Mechanical Speed3600 rpm

Holding Brakewithout

Nominal Output Power1100 W ATV32 1.1 kW 200 V single phase || 1500 W ATV32 1.5 kW 200 V single phase || 1100 W ATV320 1.1 kW 200 V single phase || 1500 W ATV320 1.5 kW 200 V single phase

Shaft Endkeyed

Electrical Connectionrotatable right-angled connector

Device Short NameBMP

Contractual warranty

Warranty: 18 months
