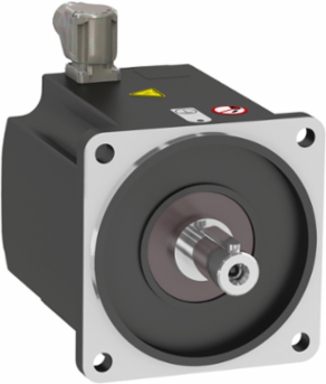

Schneider Electric BMP1401R3NA2A Synchronous Motor 230 VAC 2.2 kW IP65 140 mm Flange
- MPN: BMP1401R3NA2A
- PPN: SCH-BMP1401R3NA2A
CAD
$2784.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This synchronous motor by Schneider Electric is engineered for high efficiency and reliability in automation and control applications. Operating at 230 VAC and delivering a power output of 2.2 kW, it features an IP65 rating that ensures robust protection against dust and water ingress, making it suitable for challenging environments. With a compact design characterized by a 140 mm flange, this motor is ideal for integration into various general machinery drives, providing precise performance for your automation needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 8 mm
- Shaft Length
- 50 mm
Motor Flange Size140 mm
Complementary Attributes
- Maximum Current Irms
- 16.5 A ATV32 2.2 kW 200 V single phase, 16.5 A ATV320 2.2 kW 200 V single phase
- Minimum Operating Frequency
- 25 Hz ATV32 2.2 kW 200 V single phase, 25 Hz ATV320 2.2 kW 200 V single phase
- Maximum Mechanical Speed
- 3600 rpm
Maximum Operating Frequency300 Hz ATV32 2.2 kW 200 V single phase, 300 Hz ATV320 2.2 kW 200 V single phase
Maximum Axial Force Fa0.2 x Fr
Maximum Radial Force Fr1930 N 1000 rpm1530 N 2000 rpm1340 N 3000 rpm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Nominal Operating Frequency
- 250 Hz ATV32 2.2 kW 200 V single phase, 250 Hz ATV320 2.2 kW 200 V single phase
- Nominal Torque
- 6.37 N.m ATV32 2.2 kW 200 V single phase, 6.37 N.m ATV320 2.2 kW 200 V single phase
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 165-165 mm
- Electrical Connection
- rotatable right-angled connector
- Mounting Holes Diameter
- 11 mm
- Number Of Motor Poles
- 5
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shaft Diameter
- 24 mm
- Stator Inductance
- 1.76 mH for q-axis winding 40 °C1.47 mH for d-axis winding 40 °C
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Pep Code
- ENVPEP111049EN
- [Us] Rated Supply Voltage
- 230 V
- Package Weight(Lbs)
- 9.694 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Nominal Speed3000 rpm ATV32 2.2 kW 200 V single phase, 3000 rpm ATV320 2.2 kW 200 V single phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter130 mm
Device Short NameBMP
Holding Brakewithout
Mounting Supportinternational standard flange
Number Of Motor Stacks1
Phasesingle phase
Product Or Component Typesynchronous motor
Rotor Inertia16.46 kg.cm²
Shaft Endkeyed
Stator Resistance0.2 Ohm 40 °C
Torque Constant0.82 N.m/A 40 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length Total152 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501406040
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Ip Degree Of Protection
- IP65 standardIP67 with IP67 kit
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilityvariable speed drive ATV32 2.2 kW 200 V single phasevariable speed drive ATV320 2.2 kW 200...240 V single phase
Pep CodeENVPEP111049EN
General Attributes
- Phase
- single phase
Product Or Component Typesynchronous motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 2000 W ATV32 2.2 kW 200 V single phase, 2000 W ATV320 2.2 kW 200 V single phase
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
