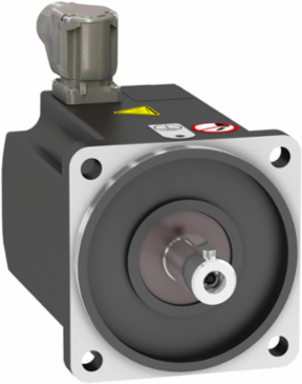

Schneider Electric BMP1001R3NA2A Synchronous Motor 230 VAC 0.75 kW IP65 3000 RPM
- MPN: BMP1001R3NA2A
- PPN: SCH-BMP1001R3NA2A
CAD
$1801.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric BMP1001R3NA2A Synchronous Motor is engineered for reliability and efficiency in various industrial applications, operating at a voltage of 230 VAC. With a robust output of 0.75 kW and a high operational speed of 3000 RPM, this motor is well-suited for use in both automation and control systems as well as general machinery drives. Its IP65 rating ensures that it is protected against dust and water ingress, making it ideal for demanding environments where durability and performance are critical. This combination of features makes it a valuable component for enhancing productivity in automated systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 6 mm
- Shaft Length
- 40 mm
Motor Flange Size100 mm
Complementary Attributes
- Maximum Current Irms
- 7.2 A ATV32 0.75 kW 200 V single phase, 7.2 A ATV320 0.75 kW 200 V single phase
- Minimum Operating Frequency
- 25 Hz ATV32 0.75 kW 200 V single phase, 25 Hz ATV320 0.75 kW 200 V single phase
- Maximum Mechanical Speed
- 3600 rpm
Maximum Operating Frequency300 Hz ATV32 0.75 kW 200 V single phase, 300 Hz ATV320 0.75 kW 200 V single phase
Maximum Axial Force Fa0.2 x Fr
Maximum Radial Force Fr900 N 1000 rpm720 N 2000 rpm630 N 3000 rpm570 N 4000 rpm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Nominal Operating Frequency
- 250 Hz ATV32 0.75 kW 200 V single phase, 250 Hz ATV320 0.75 kW 200 V single phase
- Nominal Torque
- 2.39 N.m ATV32 0.75 kW 200 V single phase, 2.39 N.m ATV320 0.75 kW 200 V single phase
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 115-115 mm
- Electrical Connection
- rotatable right-angled connector
- Mounting Holes Diameter
- 9 mm
- Number Of Motor Poles
- 5
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shaft Diameter
- 19 mm
- Stator Inductance
- 4.08 mH for q-axis winding 40 °C3.54 mH for d-axis winding 40 °C
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Pep Code
- ENVPEP111049EN
- [Us] Rated Supply Voltage
- 230 V
- Package Weight(Lbs)
- 4.476 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Nominal Speed3000 rpm ATV32 0.75 kW 200 V single phase, 3000 rpm ATV320 0.75 kW 200 V single phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter95 mm
Device Short NameBMP
Holding Brakewithout
Mounting Supportinternational standard flange
Number Of Motor Stacks1
Phasesingle phase
Product Or Component Typesynchronous motor
Rotor Inertia3.19 kg.cm²
Shaft Endkeyed
Stator Resistance1.28 Ohm 40 °C
Torque Constant0.884 N.m/A 40 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length Total128.6 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Ip Degree Of Protection
- IP65 standardIP67 with IP67 kit
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilityvariable speed drive ATV32 0.75 kW 200 V single phasevariable speed drive ATV320 0.75 kW 200...240 V single phase
Pep CodeENVPEP111049EN
General Attributes
- Phase
- single phase
Product Or Component Typesynchronous motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 750 W ATV32 0.75 kW 200 V single phase, 750 W ATV320 0.75 kW 200 V single phase
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
