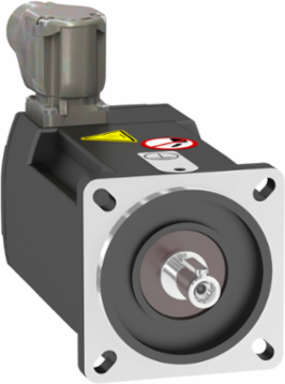

Schneider Electric BMP0702R3NA2A Synchronous Motor 0.55 kW 230 VAC IP65 3600 RPM 1.8 kg
Schneider Electric BMP0702R3NA2A Synchronous Motor 0.55 kW 230 VAC IP65 3600 RPM 1.8 kg
- MPN: BMP0702R3NA2A
- PPN: SCH-BMP0702R3NA2A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1510.98/ EA
Description
This BMP synchronous motor has a power rating of 0.55kW and works at a rated supply voltage 230V. It is designed with latest magnetic materials and an optimized design, result in shorter length at a comparable torque. It has maximum mechanical speed of 3600 rpm and its protection index is IP65. It is compatible with Altivar 32 and Altivar machine ATV320 variable speed drives. It is also RoHS compliant.
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 75-82 mm
- Number Of Motor Stacks
- 2
- Number Of Motor Poles
- 5
- Centring Collar Depth
- 2.5 mm
- Network Number Of Phases
- single phase
- Maximum Current Irms
- 5.6 A ATV32 0.55 kW 200 V single phase || 5.6 A ATV320 0.55 kW 200 V single phase
- Centring Collar Diameter
- 60 mm
- Motor Flange Size
- 70 mm
- Number Of Mounting Holes
- 4
- Key Width
- 4 mm
- Mounting Holes Diameter
- 5.5 mm
- Maximum Operating Frequency
- 300 Hz ATV32 0.55 kW 200 V single phase || 300 Hz ATV320 0.55 kW 200 V single phase
- Range Compatibility
- Altivar 32 || Altivar Machine ATV320
- Torque Constant
- 0.84 N.m/A 40 °C
Maximum Radial Force Fr710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm
Rotor Inertia1.13 kg.cm²
Maximum Axial Force Fa0.2 x Fr
Shaft Length23 mm
Length154 mm
Net Weight1.8 kg
Stator Inductance6.45 mH for q-axis winding 40 °C || 6.45 mH for d-axis winding 40 °C
[Us] Rated Supply Voltage230 V
Shaft Diameter11 mm
Minimum Operating Frequency25 Hz ATV32 0.55 kW 200 V single phase || 25 Hz ATV320 0.55 kW 200 V single phase
Type Of Coolingnatural convection
Stator Resistance2.19 Ohm 40 °C
Nominal Operating Frequency250 Hz ATV32 0.55 kW 200 V single phase || 250 Hz ATV320 0.55 kW 200 V single phase
Specifications
- Product Compatibility
- variable speed drive ATV32 0.55 kW 200 V single phase || variable speed drive ATV320 0.55 kW 200...240 V single phase
- Mounting Support
- international standard flange
- Product Or Component Type
- synchronous motor
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Nominal Speed
- 3000 rpm ATV32 0.55 kW 200 V single phase || 3000 rpm ATV320 0.55 kW 200 V single phase
- Nominal Torque
- 1.75 N.m ATV32 0.55 kW 200 V single phase || 1.75 N.m ATV320 0.55 kW 200 V single phase
Maximum Mechanical Speed3600 rpm
Holding Brakewithout
Nominal Output Power550 W ATV32 0.55 kW 200 V single phase || 550 W ATV320 0.55 kW 200 V single phase
Shaft Endkeyed
Electrical Connectionrotatable right-angled connector
Device Short NameBMP
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Contractual warranty
- Warranty
- 18 months
