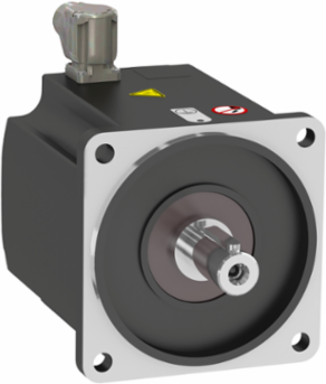

Schneider Electric BMP1402F3NA2A synchronous motor - BMP - 480 VAC - 3.95 kW - IP65 - IEC

MPN: BMP1402F3NA2A
PPN: SCH-BMP1402F3NA2A

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$3686.51/ EA

Qty:

Loading add to cart quantity...

Description

synchronous motor - BMP - 480 VAC - 3.95 kW - IP65 - IEC

Specifications

Complementary

Circle Diameter Of The Mounting Holes: 165-165 mm

Number Of Motor Stacks: 2

Number Of Motor Poles: 5

Centring Collar Depth: 3.5 mm

Network Number Of Phases: three phase

Maximum Current Irms: 16.5 A ATV32 2.2 kW 200 V single phase || 10.7 A ATV32 3 kW 400 V three phase || 14.3 A ATV32 4 kW 400 V three phase || 16.5 A ATV320 2.2 kW 200 V single phase || 10.7 A ATV320 3 kW 400 V three phase || 14.3 A ATV320 4 kW 400 V three phase

Centring Collar Diameter: 130 mm

Motor Flange Size: 140 mm

Number Of Mounting Holes: 4

Key Width: 8 mm

Mounting Holes Diameter: 11 mm

Maximum Operating Frequency: 150 Hz ATV32 2.2 kW 200 V single phase || 300 Hz ATV32 3 kW 400 V three phase || 300 Hz ATV32 4 kW 400 V three phase || 150 Hz ATV320 2.2 kW 200 V single phase || 300 Hz ATV320 3 kW 400 V three phase || 300 Hz ATV320 4 kW 400 V three phase

Range Compatibility: Altivar Machine ATV320 || Altivar 32

Torque Constant: 1.48 N.m/A 40 °C

Maximum Radial Force Fr2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Rotor Inertia32 kg.cm²

Maximum Axial Force Fa0.2 x Fr

Shaft Length50 mm

Length192 mm

Net Weight12 kg

Stator Inductance4.23 mH for q-axis winding 40 °C || 3.78 mH for d-axis winding 40 °C

[Us] Rated Supply Voltage480 V

Shaft Diameter24 mm

Minimum Operating Frequency13 Hz ATV32 2.2 kW 200 V single phase || 25 Hz ATV32 3 kW 400 V three phase || 25 Hz ATV32 4 kW 400 V three phase || 13 Hz ATV320 2.2 kW 200 V single phase || 25 Hz ATV320 3 kW 400 V three phase || 25 Hz ATV320 4 kW 400 V three phase

Type Of Coolingnatural convection

Stator Resistance0.34 Ohm 40 °C

Nominal Operating Frequency125 Hz ATV32 2.2 kW 200 V single phase || 250 Hz ATV32 3 kW 400 V three phase || 250 Hz ATV32 4 kW 400 V three phase || 125 Hz ATV320 2.2 kW 200 V single phase || 250 Hz ATV320 3 kW 400 V three phase || 250 Hz ATV320 4 kW 400 V three phase

Specifications

Product Compatibility: variable speed drive ATV32 2.2 kW 200 V single phase || variable speed drive ATV32 3 kW 400 V three phase || variable speed drive ATV32 4 kW 400 V three phase || variable speed drive ATV320 2.2 kW 200...240 V single phase || variable speed drive ATV320 3 kW 380...500 V three phase || variable speed drive ATV320 4 kW 380...500 V three phase

Mounting Support: international standard flange

Product Or Component Type: synchronous motor

Ip Degree Of Protection: IP65 standard || IP67 with IP67 kit

Nominal Speed: 1500 rpm ATV32 2.2 kW 200 V single phase || 3000 rpm ATV32 3 kW 400 V three phase || 3000 rpm ATV32 4 kW 400 V three phase || 1500 rpm ATV320 2.2 kW 200 V single phase || 3000 rpm ATV320 3 kW 400 V three phase || 3000 rpm ATV320 4 kW 400 V three phase

Nominal Torque: 14.01 N.m ATV32 2.2 kW 200 V single phase || 9.55 N.m ATV32 3 kW 400 V three phase || 9.55 N.m ATV32 4 kW 400 V three phase || 14.01 N.m ATV320 2.2 kW 200 V single phase || 9.55 N.m ATV320 3 kW 400 V three phase || 9.55 N.m ATV320 4 kW 400 V three phase

Maximum Mechanical Speed3600 rpm

Holding Brakewithout

Nominal Output Power3000 W ATV32 3 kW 400 V three phase || 3000 W ATV32 4 kW 400 V three phase || 2200 W ATV32 2.2 kW 200 V single phase || 3000 W ATV320 3 kW 400 V three phase || 3000 W ATV320 4 kW 400 V three phase || 2200 W ATV320 2.2 kW 200 V single phase

Shaft Endkeyed

Electrical Connectionrotatable right-angled connector

Device Short NameBMP

Offer Sustainability

Rohs Exemption Information: Yes

Pvc Free: Yes

Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

China Rohs RegulationX

Contractual warranty

Warranty: 18 months
