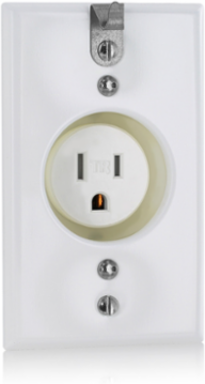

Leviton T5015-CHW Tamper-Resistant Recessed Single Receptacle, 15 Amp, 125 Volt
- MPN: T5015-CHW
- UPC: 078477703489
- PPN: LEV-T5015-CHW
CAD
$36.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single Receptacle Outlet, Commercial Specification Grade, Recessed Clock-Hanger, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- cCSAus, NOM-ANCE
Applicable StandardsUL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Nylon
- Grounding Screw
- Steel
- Mounting Screws
- Steel
- Wallplate
- Painted Steel
Face MaterialNylon
Line ContactsBrass Triple-Wipe
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.14-10 AWG
TerminationBack and Side Wire
Product Features
- Device Type
- Single Receptacle Outlet
FeatureTamper-Resistant
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
Electrical Specifications
- Amperage
- 15 A
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 2000V per UL498
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
